stator coils powder coating machine

stator coils powder coating machine is designed to do heating powder coating for the stator coils

1.Heating coating

2.No powder spilt into the working environment

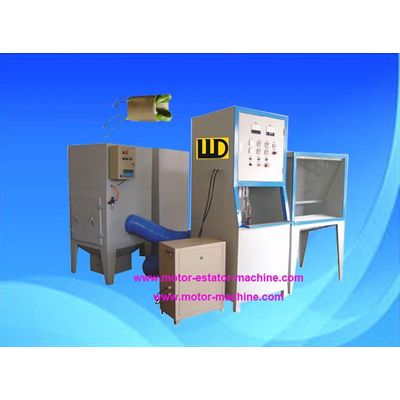

WD-TL-XQTF series stator coils powder coating machine is designed to do heating powder coating for the stator coils.

Above machine is composed of

A)Machine host 1 piece (1253x1300*including cleaning room 500mm*x2100mm)

Room body is made of A3 cold rolled sheet of 1.2mm thickness.

B)DC electric heating device 1 piece

Heating power is adjustable within 0~5KW, its working condition is gap mode, heating time is settable.

C) Pneumatic lifting device 1 set

D) Fluidizing bed coating device 1 set

It is made of PVC plate. It has assembly air room and micro holes plate.

E) Powder vibration device 1 set

F) 1st class pulse recycling device 1 set with 2 pieces filters and pulse automatic reverse blowing, which could clean the powder on the filters through the machine operation, and 1 piece air gun in the rear part.

G) There is optical grating on the gate of coating room, which is to keep the operator safer.

H) There is 3 colors tower lamp at the top of machine to show the machine status.

2) Powder recycling machine 1 piece (830x830x1800mm)

Model 25 pulse reverse blowing filter style recycling machine, machine power 2.2KW





WD-TL-DZ Powder coating machine is designed to do coating for the stator stacks.

Parameter:

Recycling air volume: 1700m3/h

Motor power: 1.5KW

Max compressed air pressure: 0.5MPa

Compressed air consumption: 0.3m3/min

Power supply: 380V, 50Hz, 3 phases, 4 wires

Compressed air: 0.6MPa; Max oil content: 0.1ppm; Max water content: 1.3g/m3

Dimension: 1300 x 1720 x 2100mm



(SY-1) WD-TL-SYZ1 armature powder coating machine is designed to do powder coating in the lab.

I. Workflow

(1) Armature powder coating (electrostatic powder coating)

(a) Assembly the armature to the fixture and put it on the driving coating coupling in the coating chamber.

(b) Press "start", armature begin rotation, powder fluidizing and electrostatic start, powder in fog from fluidizing box is absorbed to the armature.

(c) After coating, electrostatic fluidizing stops, powder removing device stretches out to do the round powder removing.

(d) The production cycle completes after the powder removing process.

(e) Take out the fixture with armature and remove the fixture manually.

(f) Put into the factory already-owned oven for curing.

(2) Stator coating (heating dipping coating)

(a) Stators need to be done pre-drying at first.

(b) Wrap the round stator and internal stator by covering material.

(c) Do the pre-heating of wrapped stators in factory owned oven.

(d) Take out the heating stators by clamp and fast dip it into the powder box (the coating thickness is decided by the coating time and heating temperature.

(e) Take out the stators and remove the covering material for natural cooling.

(f) Put the stators to the factory owned oven for curing.



II. Machine composition (a) WD-TL-SYZ powder coating machine 1 set

Body size: 1200 x 710 x1610mm (L x W x H)

Space size: about 1500 x 1500 x 2000mm (L x W x H)

This powder coating machine is composed of

*Electro-static high voltage generator 1 set

*Fluidizing chamber 1 piece (200 x 200mm)

*Speed adjusting motor and controller 1 set

*
