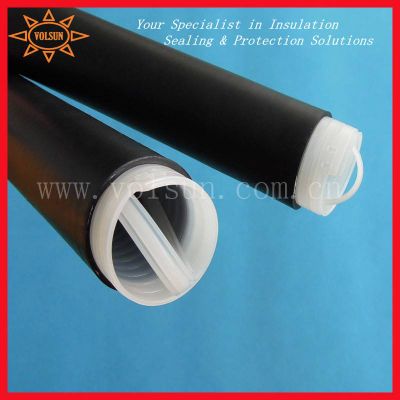

Cold shrink EPDM tubes connector insulators

EPDM rubber/EPDM rubber cold shrink tube. Simply prepare the connection, position the tube and unwind the pre-scored core. The natural tendency of the rubber sleeve to return to its original diameter provides constant radial pressure, forming a reliable, water resistant seal. EPDM rubber/EPDM rubber cold shrink tube . All without heat, special tools or a time-consuming installation procedure. And, it's easily removed when system maintenance is required.

Excellent weather resistance, ultraviolet aging resistance and higher embrittlement resistance than heat shrink tubing

More resistant to slab and prick, abrasion, acid and alkali than silicone cold shrink tubing







Simultaneously expands and shrinks with workpieces without clearances, seals tight in harsh environment

Stably sealing the workpieces in windy environment

Well suited for cable less than 1KV

Seals tight, retains its resiliency and pressure even after prolonged years of ageing and exposure.

Simple , safe installation, requires no tools or special training. No torches or heat work required.

Standard color:black

Spec.Corresponding

3M's modleInner Diameter D(mm)Min Cable Outer diameter (mm)Max Cable Outer Diameter (mm)Recovered Length L(mm)

VE18-3ID 187.814.380

VE18-68423-6ID 187.814.3152

VE18-78424-7 (*)ID 187.814.3178

VE25-78425-7ID 2510.120.9178

VE25-88425-8ID 2510.120.9203

VE25-11ID 2510.120.9279

VE25-12ID 2510.120.9305

VE28-5CXS-1 (*)ID 288.022.5125

VE35-6ID 3513.930.1152

VE35-8ID 3513.930.1203

VE35-98426-9ID 3513.930.1229

VE35-118426-11ID 3513.930.1279

VE42-68427-6ID 4216.835.1152

VE42-8ID 4216.835.1203

VE42-10ID 4216.835.1254

VE42-128427-12ID 4216.8 35.1305

VE42-168427-16ID 4216.835.1406

VE42-18ID 4216.835.1457

VE50-8CXS-2ID 5013.543.7203

VE58-68428-6ID 5824.049.3152

VE58-7ID 5824.049.3178

VE58-8ID 5824.049.3203

VE58-10ID 5824.049.3254

VE58-128428-12ID 5824.049.3305

VE58-188428-18ID 5824.049.3457

VE58-248428-24ID 5824.049.3610

VE58HP-1098KC-21 (*)ID 5820.551.0254

VE65-10CXS-3 (*)ID 6523.757.5254

VE77-68429-6ID 7732.267.8152

VE77-7ID 7732.267.8178

VE77-98429-9ID 7732.267.8229

VE77-128429-12ID 7732.267.8305

VE77-13ID 7732.267.8330

VE77-14ID 7732.267.8355

VE77-188429-18ID 7732.267.8457

VE77-22ID 7732.267.8550

VE77HP-1398KC-31 (*)ID 7727.470.0330

VE105-8ID 10542.693.7203

VE105-98430-9ID 10542.693.7229

VE105-188430-18ID 10542.693.7457

VE105-20ID 10542.693.7508

VE120-24ID 12033.0114.3610

VE160-24ID 16060.0154.0620

Installation features make it the preferred coax connection seal.

Simple installation requires only the installer's hands.

Excellent weathering properties.

Excellent abrasion resistance.
