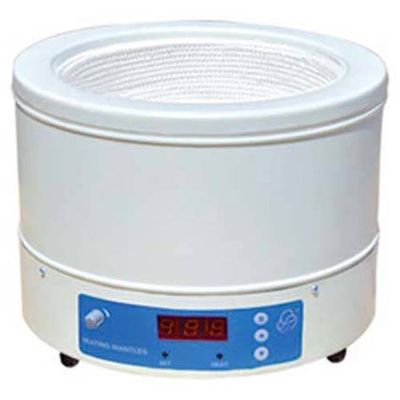

Heating Mantle With Digital and Stirrer(CE)

Uses: It applies to colleges, petrochemical industries, medicine, and environment protection institutions for liquid heating. Characteristics: 1. Cold rolling sheet stretching and spraying exterior. 2. Auto temperature control; Digital display and with stirring function; With characteristics of large heating area, fast warm-up, high temperature evenness, accurate tem-control, time and cost saving. 3. Heating and stirring can proceeds simultaneously, stepless speed adjustment 4. Featured by anti-corrosion, age-resistant, durable and safe. 5. Adjustable Sensor Rack with Stainless Rods.

Model 98-III-B Specification 100 250 500 1000 2000 3000 5000 10000 20000voltage（V） 220V/50HzMax use Temp(℃)450℃ Power (w) 100 150 250 350 450 600 800 1200 2400Speed(r.p.m) 0-1400Working time ContinuousExterior Size(mm) φ220u00d7165 φ220u00d7165 φ220u00d7165 φ280u00d7220φ330u00d7230φ340u00d7245φ350u00d7250φ425u00d7320500u00d7510u00d7390Packing Size (mm) 230u00d7215u00d7195 230u00d7215u00d7195 230u00d7215u00d7195 280u00d7280u00d7300 345u00d7365u00d7295 365u00d7365u00d7295 390u00d7390u00d7310 470u00d7470u00d7380 540u00d7540u00d7420N.W.(Kg) 2.5 2.5 2.5 5.5 6.5 7.5 8.5 9.8 21G.W.(Kg) 2.8 2.8 2.8 6 7 8 9.2 12 26
