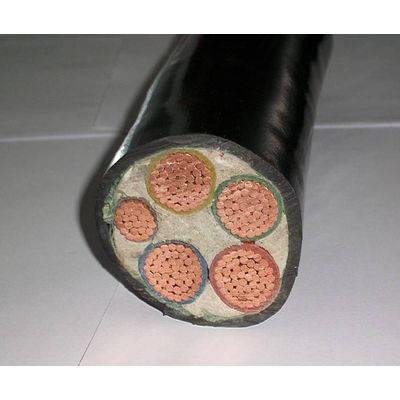

0.6/1kv XLPE insulated PVC sheathed cable

1.rated voltage: 0.6/1KV

2.XLPE Insulated

3.ISO,CCC certifications

4,fire-resistance,fire-retardant offered

5.OEM offered

1. NO.of Core: 2 3 4 5 3+1 3+2 4+1 etc.

2. Power Wire Rated voltage: 0.6/1KV

3. Nominal Cross-sectional area: 1.5~240mm2

4. Power Cable Test voltage(a.c): 3.5kv/5min

5. Standards: GB/12706 or IEC,BS,DINICEA

6. Power Cable Application: This XLPE insulated power cable is suitable for use in power distribution lines or fixed



7. Power Cable Operating Characteritics:

1). Max.permissible continuous operating temperature of conductor(PVC/XLPE): 70u00b0C/90u00b0C

2). Max.short-circuit temperature of conductor shall not exceed(5s maximumduration) XLPE:250u00b0C

3). The ambient temperature under in installation shall not below 0u00b0C

4). The bending radius of single-core power cable shall not less than 20 times of the cable diameter; The bending radius of multicore power cable should not less than 15 times of the cable diameter.
