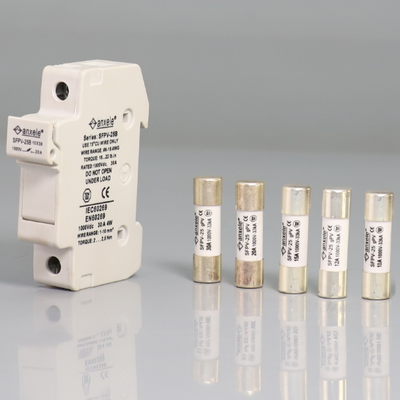

SFPV-25 12A 1000v Solar photovoltaic fuse
Application
SFPV-25 Fuse was designed and manufactured , complying with the standard IEC60269-6 The Rated Current up to 30A,rated voltage up to 1000V DC. It applied for PV DC combiner box, inverter etc, with the main function of over-current protection and effective disconnection.
A range of 10×38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays(reverse current, multi-array fault).
Parmeter
SFPV-25 12A Fuse | ||
Pole | 1P | |
According to | IEC 60269-6 | |
Electrical Characteristics | ||
Rated Working Voltage | Ue | 1000V DC |
Rated Current | In | 12 A |
Breaking Capacity | 33KA | |
Max Power Dissipation | 3W | |
Contol and Indication | ||
Operating State/Fault Indication | Indicator Light OFF/Indicator Light ON | |
Connection and Installation | ||
Wire | 2.5mm2~25 | |
Terminal Screws | M5 | |
Torque | Nm | 2.5 |
Degree of Protection | IP20 | |
Installation Environment | ||
Fuse Size | 10×38 mm | |
Operating Temperature Range | TU | -30u2103~+70u2103 |
For Mounting On | TH35-7.5/DIN35 | |
Pollution Degree | 3 | |
Relative Humidity | +20 u2103≤ 95%,+40u2103≤50% | |
Weight | 0.07kg Per pole | |
Installation Class | III |
Dimensions
