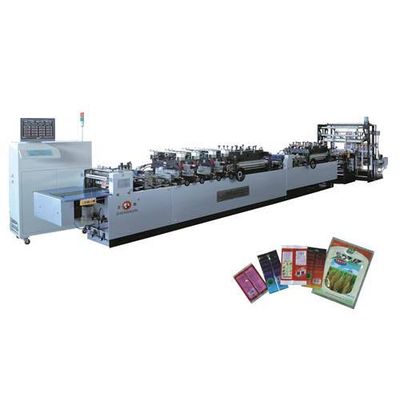

Three Side Sealing & Stand Bag Making Machine (RXZD-D)

Product Description

Three Side Sealing and Stand Bag Making Machine

Feature:



This bag making machine is suitable to use different kinds of laminated (Compounded) film to make Three Side Sealing and Stand Bag

Performance and Characteristics:



1. The whole machine controlled by import PLC control system with Human Machine Interface. More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.



2. Constant auto-tension control for unwinding, LPC edge collecting, AC inverter constant speed control material auto feeding.



3. Material dragging use double Imported servo-motor system to control.



4. Up-down sealing and pressing use AC inverter driver



5. Sealing temperature adjusting by PID, non-touch auto control, setting on Human Machine Interface



6. Automatic Multi-function Pneumatic punching device, auto Edge material cutting and Recover, use static eliminator



7. Temperature adjustment range: 0〜 300u00ba C



8. Auto Counting, pre-set on computer is available.



9. Auto length fixed, Photoelectric-eye tracking system.



10. Punching device: Set continuous, interval, stop, stamping time can be preset



11. Material Skip Feeding: Two to six times available.



12. Batch Conveying, batch quantity can be preset.

Main parameter:



Remark:

1. Actually operation speed is due to different bag shape, material and size.

2. Due to the technical upgrade, change the machine design, technical parameter, characteristics without notice.



Model RXZD-D400 RXZD-D500 RXZD-D600

Max roller width (mm) 850 1050 1250

Max roller Dia(mm) Φ 600 Φ 600 Φ 600

Max bag making width(mm) 400 500 600

Max bag making length(mm) 1920 1920 1920

Bag making speed (piece/min) 150 150 150

Material feeding speed (m/min) 40 40 40

Air pressure(MPa) 0.6 0.6 0.6

Cooling Water(L/min) 15 15 15

Power (kw) 40 40 45

Weight (kg) 5000 5500 6000

Machine size(m) 12u00d7 1.7u00d7 1.87 12u00d7 1.8u00d7 1.87 12u00d7 2.0u00d7 1.87
