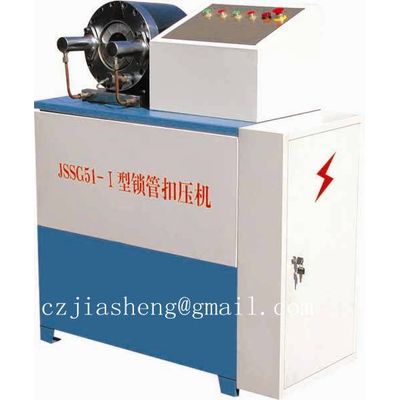

crimper hose JSSG 51-I

JSSG-51-Rubber

Tube Locking and Pressing Machine JSSG-51 Rubber Tube

Locking and Pressing Machine

(With a hose skinned bodies) JSSG-51-III Rubber Tube

Locking and Pressing Machine

Voltage 380V/220V 380V/220V 380V/220V

Deduction pressure 280T 280T 280T

Pressure System 25MPaAdjustable 25MPaAdjustable 25MPaAdjustable

Dimension 1200(From top to bottom)*460(Before and after)*840(left and right)mm 1200(From top to bottom)*460(Before and after)*840(left and right)mm 740(From top to bottom)*450(Before and after)*650(left and right)mm,

A high degree of work:550mm(From the bottom)

Die 17-63 (diameter) of a total of 10 17-63 (diameter) of a total of 10 17-63 (diameter) of a total of 10

Range of Withholding 17-63 17-63 17-63

Electrical power 4.0KW/3.0KW 4.0KW/3.0KW 4.0KW/3.0KW

Hydraulic Pump CBW-314Gear Pump/10YCY14-1BQuantitative Piston Pump CBW-314Gear Pump/10YCY14-1BQuantitative Piston Pump CBW-314Gear Pump/10YCY14-1BQuantitative Piston Pump

Fuel tank capacity 120L 120L 70L

Motor-driven peeling agencies

Mandrel number --- 6-38 of a total of 10 ---

The clamping force can reach 10980 KN. We have the new design and choose the hydraulic valve very carefully to make sure the work would be done high efficiently and reliably. The swallow tail moulds make sure it is easy to press varies kinds of elbows and flange with special shapes. The design of low barycenter can reduce the operator's labor intensity. The type of machine especially suits the shipping industry, oil drilling, heavy industry, large-scale mine. It is easy to operate because there are two ways for users to choose, by feet or by hand. The Max Press Tubes can be 64

Technical parameters: Max Pressing pipes' inner diameter:76mm

Max Pressing elbows' length:320 mm

Voltage:380V

Power:7.5KW

Size: length *Width*Height: 1570*740*1400 mm

Range of Pressing 6-102 Mould's Type 165x100mm(Swallow tail type)

Max 181mm Pump 25YCY14-1B

Power of Crimping and Pressing 1098T Pressure of System 31.5MP

Power 5.5kw Volume 1200x1
