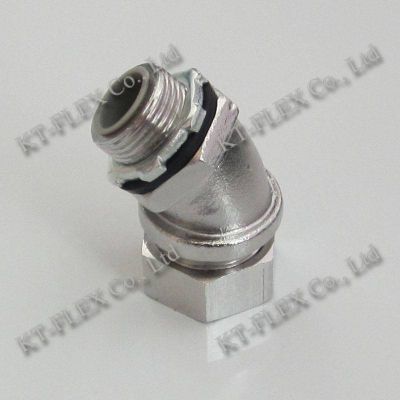

45 degree liquid tight SUS304 flexible conduit fitting

Product Description

Quick Details

Material: Stainless Steel, Brass Technics: Casting Type: Coupling Place of Origin: Tianjin, China (Mainland) Model Number: LTCS Brand Name: KT Connection: Male Shape: Equal Head Code: Hexagon Item No.: LTCB-30 Thread: NPT1/2" Conduit Size: 3/8" Latus Rectum: 12 mm Thread Length: 12.70 mm Coating: Nickel Protection Rating: IP67

Product Feature

45 degree liquid tight SUS304 flexible conduit fitting
Material: Brass

Coating: Zinc, Nickel, Chrome
Protection rating: IP67
Furnished with insulating liner
1.Patented split gland-ring is designed to slip into the conduit quickly and go grip the jacket of the conduit, speeding installation, assuring a perfect seal, and preventing pullouts.
2.All components are reused. KT-FLEX liquid tight connector can be easily disassembled and reused after years of service.
3.Sealing washer (included) provides a liquid tight seal when terminating the connector in a threadless opening.
4.Heavy duty locknut included with every KT-FLEX liquid tight connector assures continuity of ground.
5.All metallic components are electro plated for adding corrosion protection.
6.Bodies- 3/16" to 4" iron, stainless steel or brass; Locknuts-3/16" to 4" iron, stainless steel or brass.

Product Specification / Models

LTC Series

Application / Models

Join Cables&flexible conduits to EMT tubes

Other Information

Material: Brass
Coating: Zinc, Nickel, Chrome
Protection rating: IP67
Furnished with insulating liner
