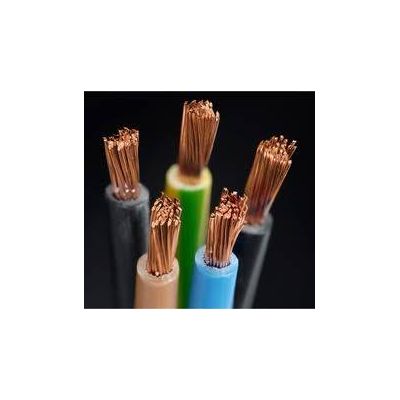

UL1015 PVC COPPER / TINNED electrical wire 600V 22AWG

Description:



Related temperature: 105C

Related voltage: 600V



Reference standards: UL Subject 758 & UL 1581



Tinned or bare, stranded or solid copper conductor



Insulation: PVC insulation



Uniform insulation thickness to ensure easy stripping and cutting



Passes UL VW-1 flame tests

For internal wiring of electronic and electrical equipment





Description:

Rated temperature: 80,or105



Rated voltage:600V



Reference stranded: UL subject 758 & UL 1581



Tinned or bare, stranded or solid copper conductor



Insulation: PVC



Uniform insulation thickness to ensure easy stripping and cutting



Passed Ul VW-1 flame test.

TypeMaterialspecification AWGConductor No.Conductor DiaInsulaton Thick mm



UL 1015bare cooper or tinned2670.160.8

UL 1015bare cooper or tinned24110.160.8

UL 1015bare cooper or tinned22170.160.8

UL 1015bare cooper or tinned20260.160.8

UL 1015bare cooper or tinned18410.160.8

UL 1015bare cooper or tinned17510.160.8

UL 1015bare cooper or tinned16270.250.8

UL 1015bare cooper or tinned15340.250.8

UL 1015bare cooper or tinned14440.250.8

UL 1015bare cooper or tinned13530.250.8

UL 1015bare cooper or tinned12700.250.8

UL 1015bare cooper or tinned11840.250.8

UL 1015bare cooper or tinned101070.250.8

UL 1015bare cooper or tinned9940.30 1.2

UL 1015bare cooper or tinned81180.30 1.2

UL 1015bare cooper or tinned71470.30 1.5

UL 1015bare cooper or tinned61880.30 1.6

UL 1015bare cooper or tinned52350.30 1.6

UL 1015bare cooper or tinned42990.30 1.9

UL 1015bare cooper or tinned33780.30 1.9

UL 1015bare cooper or tinned24660.30 1.9

UL 1015bare cooper or tinned15990.30 2.1

UL 1015bare cooper or tinned1/07570.30 2.2

UL 1015bare cooper or tinned2/09480.30 2.2

UL 1015bare cooper or tinned3/011950.30 2.2

UL 1015bare cooper or tinned4/015000.30 2.2

UL 1015bare cooper or tinned25017960.30 2.5

UL 1015bare cooper or tinned30021480.30 2.5

UL 1015bare cooper or tinned35025030.30 2.5

UL 1015bare cooper or tinned40028720.30 2.5

UL 1015bare cooper or tinned45032250.30 2.5

UL 1015bare cooper or tinned50035790.30 2.5

UL 1015bare cooper or tinned55039460.30 3

Application:

For internal wiring of electronic and electric equipment.



the electric normal cable is 10AWG/12AWG/14AWG/16AWG/18 AWG/20AWG/22AWG/24AWG/26AWG 600 V, 1 conductor line.
