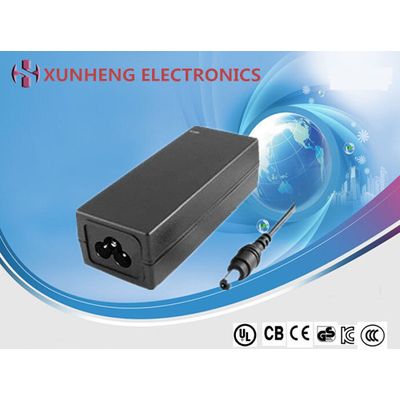

90-150W OEM/ODM customized, high performance desktop power adapter comply w/energy level VI

Applications

Fixed frequency control circuit, apply to communication products, digital products, energy conservation and environmental protection products, massage equipment, fitness equipment, medical equipment and other household electrical appliances.


Product characteristics

• Safety approval of CCC, CB, ETL, CE, GS, BS, KC, SAA & PSE
• Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)
• Customization: EU standard, American standard, British standard, Australia standard, Korean Standards & Chinese standard.



Electrical characteristics

• Input voltage: 100-240VAC(90-264VAC)
• Input current: 2.0A Max.
• Frequency: 50/60Hz(47-63Hz)
• Output voltage: 4.6-4.8V
• Output current: 0.1-10A
• No-load power consumption: 0.3W max.
• Efficiency: 87% min
• Ripple & noises: 50-200mV
• Line regulation: ± 1%
• Load regulation: ± 5%


Output protections

• Short circuit protection
• Over voltage protection
• Over current protection



Environmental characteristics

• Hi-pot test: 3750VAC 60s 5mA max.
• Insulation resistance: 100M Ω min.
• Leakage current: 0.25mA max.
• Operating temperature: 0-40u2103
• Storage humidity: 5-95%RH
• Burn-in test: Rate Load, 40±5u2103,4 hours
• EMC standard: EN55022 class B/FCC Part 15 class B EN55024/A1:2001/EN61000
