worm gear linear actuator, lead screw driven linear actuator has 10 models: 0.5ton screw jack, 1ton screw jack, 2ton screw jack, 3ton screw jack, 5ton screw jack, 10ton screw jack, 15ton screw jack, 20ton screw jack, 30ton screw jack, 40ton screw jack, 50ton screw jack, 100ton screw jack.

worm gear linear actuator, lead screw driven linear actuator features:

1. Static load capacity maximum 100 ton, dynamic load capacity maximum 26 ton.

2. Lift screw diameter from 20 mm to 100 mm, screw pitch from 5 mm to 16 mm.

3. Each jack model has 3 worm gear ratios from 1/5 to 1/40.

4. Translating screw, rotating screw, keyed screw configurations in upright or inverted mounted orientation.

5. Accurate positioning, self-locking acme screw which supports the loads and hold position with no need to employ brake mechanism or other locking systems.

6. Manual operated screw jack by hand wheel or hand crank, motorized screw jack by electric motor or gearmotor driven, or both.

7. 3-phase or single phase motor driven with 1500 rpm input, standard lifting speed 1500 mm/min, 750 mm/min and 375 mm/min.

8. No standard lift screw stroke, all lift screw travel length is processed according customers requirements. Under max. compression load, without guides, from 100 mm to 900 mm stroke, with guides from 200 mm to 1800 mm stroke. Under a tension load, from 700 mm to 4500 mm stroke.

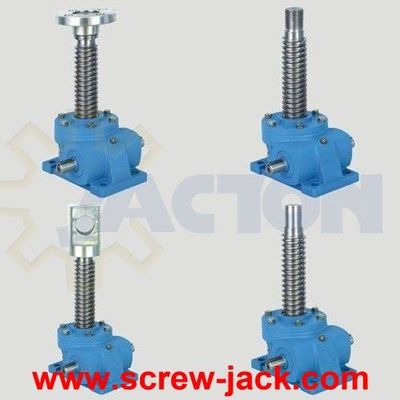

9. Lift screw end fittings include top plate, clevis end, plain end and threaded end, standard or your design dimensions are available.

10. Individually or multi worm gear screw jacks system arrangements are available.

11. Compared with fast speed hydraulic cylinder and pneumatic cylinder, it is of easy installation, small sizes, easy operation and maintenance, precisely lifting, self-locking, synchronous speed, environmental protection, multiple units arrangements.

Compared with fast speed hydraulic cylinder and pneumatic cylinder, it is of easy installation, small sizes, easy operation and maintenance, precisely lifting, self-locking, synchronous speed, environmental protection, multiple units arrangements.

JT0.5T-JT100T

application in steel, pipe, tube, plate, roll forming roller adjustment, feeder straightener rolls adjustment, adjusting synchronous coil feed lines rolls, precision roller leveler, coil sheet slitter line, paint coating line, cut to length line, tension levelling line, continuous galvanizing line, beverage production line, foam concrete cutting machine, sanding machine, heavy vehicles mobile lifting platform, bottle monitoring system height adjustment, conveyor adjustment, plate saw angle adjustment, spray infeed conveyor lift system, theatre stage lifting platform, solar tracker, satellite dish antenna azimuth, raising sluice gate, screw scissor lift table, synchronized lifting system, food processing lifting system, extrusion machine, cnc steel leveling machine, blow molding machine, curing oven lifts, bolted tank, steel shuttering concrete beams adjustment, vintage industrial crank desk, solar panel tracking system, railway maintenance lifting jack, damper adjustment, continuous casting, cnc cut to length machine, robotics arm raising, palletizer, extrusion machine, motorized self-raising tower system, angle tilt adjustments with double clevis, aircraft docking system, open and close flood gates, metallurgy industry, mining industry, chemical industry, construction industry and irrigation industry.
