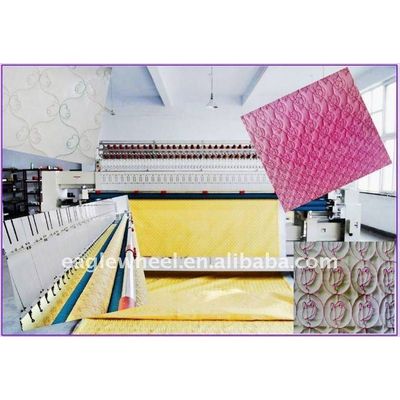

GYSG233 High Speed Computer Quilting Embroidery Machine

GYSG233 high speed computerized quilting with embroidery machine can be used for fabric of all kind of designs in textile industry. For example, curtain, bed products, seat cushion, garment, fabrics. It can satisfy the demand of customers in most degree. It has the highest quilting and embroidery speed with perfect products. The machine adopt the latest and advanced technology which make it working well and steady. At present, The same production technology not found yet abroad.

quilting machine

1.quilting machine with embroider function

2.two needles per head,higher efficiency

3.two big rotary hook per head,more steadily

Technical Parameters

Main Motor Servo Motor

Stitch Lenth 0.15-12.7mm binary 0.15-12.7mm

Rotary Hook Big Rotary Hook

Power Supply Three Phase 380V/50Hz

Maxmum Speed 1000rpm

Power 4.5kw



Specifications

Model GYSG233

Needles 2

Heads 33

Total Needles 66

Needle Interval 50.8mm

X direction(one pattern) 50.8/101.6mm

Width 3353 mm

Y direction unlimited continuously feeding

Dimensions 5275*1350*1942mm
