Product Description
FJ series metal sealed bearing tricone bit
Cutting structure
The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit. The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.
Gauge structure
Multiple gauge protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increase gauge holding capacity and bearing life.
Bearing structure
High precision journal with two thrust faces, balls lock the cone. Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure of the bearing are improved, and suitable of high rotary speed.
Seal and lubrication
The advanced metal seal package consists of two metal seals and elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieves the bearing seal. In the drilling, metal seals are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
Product application
It is suitable for downhole motor and high speed applications.
Current availability
Product Feature
1. High-strength, high flexibility, high temperature and high wear resistance.
2. High-precision metal seal.
3. Locking roller ball, to adapt to high-speed.
4. The use of high strength high toughness carbide teeth,
5. Hours in the rotary cone bit with the impact, crushing and shearing the role of broken rock.
6. Cone bit to adapt to the soft, medium and hard of various strata.
7. Reasonable price and long working life
Product Specification / Models

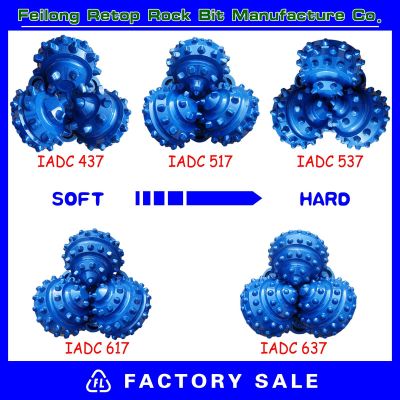

IADC:537 547
Application / Models
Applicable Formation:
Soft to medium with low compressive strength, such as medium soft shale, medium soft limestone, medium soft sandstone and medium formation with harder and abrasive interbeds, etc.
