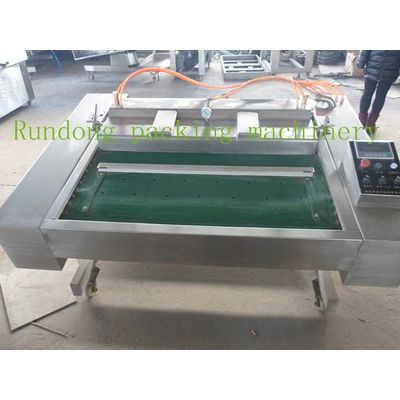

pneumatic continuous vacuum pachaging machine

pnematic continuous vacuum packaging machine is a new developed energy-saving vacuum packaging machine. the machine uses negtive pressure transmission to cylinder instead of the traditional motor, through the gear and rack driving, with a high precision, steady lifting , rolling belt tape is accurate,the distinctive features of, Equipment operators no need to manually adjust the belt position, this way of transmission is better than traditional way of conneting rod drive

pnematic continuous vacuum packaging machine is a new developed energy-saving vacuum packaging machine. the machine uses negtive pressure transmission to cylinder instead of the traditional motor, through the gear and rack driving, with a high precision, steady lifting , rolling belt tape is accurate,the distinctive features of, Equipment operators no need to manually adjust the belt position, this way of transmission is better than traditional way of conneting rod drive

Technical parameters:

Chamber size:1220*580*120mm

Vacuum: 200Pa

Seal size:1100*10mm

Voltage:380V/50Hz

Cooling water:0.15MPa

Dimension size: 1900*1500*1285mm

Capacity:3-5 times/min

Total power:4KW

kinds of food packaging
