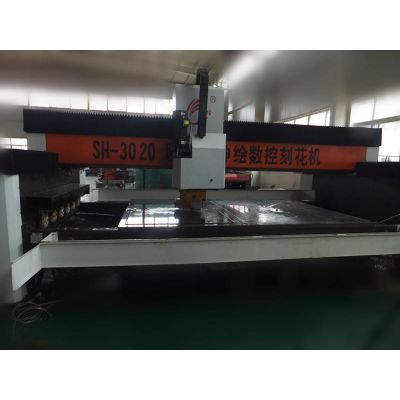

Shenhui CNC Glass Engraving Machine

Product Instruction

CNC Glass Engraving Machine I a new generation glass craft further processing equipment. With adoption of the most advanced control system of China, it engraves various ideal graphs on glass after many times test. Its idling stroke speed is same as German similar products and increases working efficiency, reduces processing cost, it is perfect machine for glass craft industry.

Technical Parameter

Machine size(L*W*H)4290X2200X2420/5410X3050X2420

Working table(L*W)2200x1200mm/2600x1900mm

X,Y stroke2200x1200mm/2600x1900mm

C axis gyration angle0-360u00b0

Positioining accuracy9XYZ)0.10x0.10x0.092mm

Repeating positioning(xyz)0.05x0.05x0.01mm

Z axis10m/min

Blade stock capacity4-6sets

Spindle speed6000rpm

Spindle Power5.5KW

Max groove width20mm

Glass thickness3-30mm

Max blade diameter160mm

General equipment power16kw

Max idling stroke speed30m/min

Machine weight5.3T

Service

1.Free maintenance during lifespan.

2.Free training course at our factory.

3.Provide the consumable parts at an agency price when you need replacement.

4.24 hours online service each day,free technical support.

5.Global training including installation,operation,maintenance and safety guide.

After-sale service

Free training operators will be carried out with the basic laser knowledge and safe operations,and daily in customers,worksite,in order to make sure independent operations by the users.Free warranty for 1 year after installation .

We'll send you the photos of your machines in every stage of production,and normal operation will be provided.Daily maintenance and cheeking will be done to solve the problem by the regular visit of Shenhui's technical teams.
