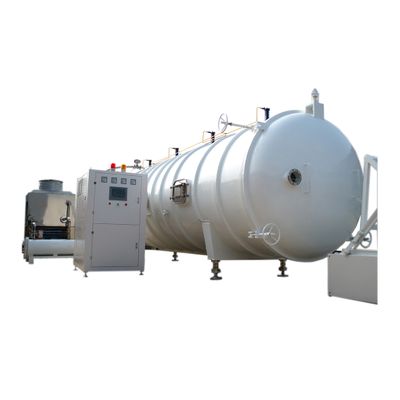

High frequency vacuum wood drying kiln

High frequency vacuum wood drying kiln is a new type woodworking machine for fast wood drying/seasoning.

High frequency (radio frequency) is a new method for wood drying. It saves time and energy. High frequency wave can penetrate wood deeply. High frequency vacuum wood drying kiln is times faster than steam drying and more uniform. In vacuum condition and lower temperature, vacuum can suck wood moisture out and double increase heating efficiency. After drying, there is no crack, shrink nor color changing. High frequency vacuum wood drying kiln can dry all kinds of wood, especially for large square beam, hard wood, veneer and rosewood.

High frequency vacuum wood drying kiln is also very suitable for secondary drying. For wood secondary drying, it will use 10 to 20 hours according to different wood species, thickness and moisture contents. Low power costs, fast wood turnover rate, convenient operation and saving floor space. It is the best choice for wood drying for different scales of furniture manufacturers.

Benefits of HF Vacuum Wood Drying

• Fast drying – More than ten times faster than conventional steam kiln
• More selective, flexible and convenient
• Environment friendly, no pollution. Improve working environment and save the labor.

• High drying quality – After drying no shrinkage, no color changing. High outturn rate of wood material and less defect
• Simple technology process and easy to operate
• High comprehensive benefits

• Stress removing – It can remove stress of woods after drying to avoid cracking after drying
• High frequency waves can kill the worm and bacteria in the wood
• Take up less money, capital turnover high

Difference between high frequency vacuum drying and other drying methods

High frequency drying is internal heating method. It makes water heat themselves. Totally different with conventional external heating method (conductive drying method)

High frequency drying can make wood inside temperature higher than surface. Together with pressure difference, it increases the transfer speed of wood moisture from inside to outside. Much better and conductive heating method.

During high frequency wood drying, the distance between two layers of electrodes should be 150-250mm. The large distance can reach to 500mm. Other drying method cannot reach to such thickness. It is very good at thick wood and hard wood drying.

High frequency heating makes wood temperature gradient less than normal heating method. So the inner stress is much less than others. The wood will not easy to crack.

High frequency vacuum wood drying kiln equips with hydraulic press. During the drying process, it will give pressure on wood. After drying, it can keep wood straight and correct the wood slightly.

Under vacuum condition, vaporization temperature is low. It makes low temperature wood drying come true. High frequency plus vacuum, can protect wood from cracking, bending and color changing problems.

Specs – High frequency vacuum wood drying kiln
