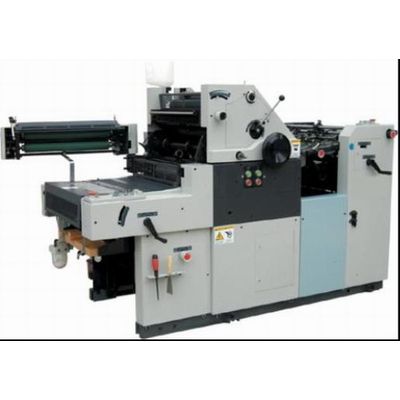

Offset printing machine YH-56 Series

YH56NP have add one more function u2013NP system. It can printing number at the same time,, press horizontal line and vertical line, colophony protruding printing. Can be model, can be supplemental secondary planet type u2013double colors system, 2 colors to be finish at the same time, single color with double color can be change flexible, increase the efficiency of producing.
Completely machine adopt PCL computer control, it have the auto stop function when the paper jam.

Technique parameter:
Maximum paper area: 560*400mm (sidewards formfeed)
Maximum printing area: 550*375mm
Use paper weight: 28-250g/m2
Printing speed: 2000-8000pcs/Hour
Printing size: 560 * 420*0.15mm
Mackintosh size: 560*460*1.95mm
Ink roller:
Main body: 14(2 forme inking rollers)
NP System : 6(2 forme inking rollers)
Dampening roller:
4(1 forme-damping rollers)
Main motor power: 1.1 KW
Air-pump motor power: 0.55KW
Power supply: 220V/50Hz
Overall size: 1760mm*1000mm*1340mm
Weight: 1200kg (include NP system) or 1000kg (exclude NP system)
