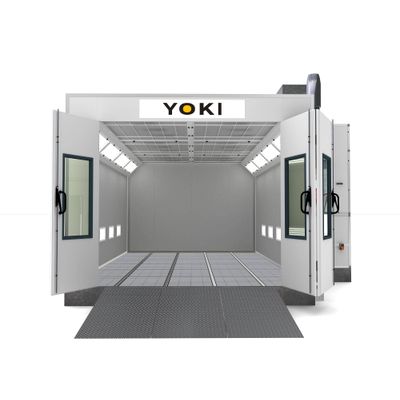

Specification for YK-360 Spray Car Baking Paint Booth

Inside Dimension6900u00d73900u00d72700 mm(Lu00d7Wu00d7H)

Outside Dimension7000u00d75400u00d73400 mm(Lu00d7Wu00d7H)

Basement & FloorComplete steel assemble, height is 300mm, full grille floor with guide plate underneath

Ramp3Pcs ramps: 900u00d72000 mm(Wu00d7L/pc, zinc-plated steel

Main Door3-folds of handmade door: 3000u00d72650 mm(Wu00d7H), thickness is 50mm, double skinned made by thickness of colorful steel is 0.6mm, color: grey white, configure heat insulation tempered glass

Personal Door1-fold: 800u00d72000mm(Wu00d7H),thickness is 50mm, double skinned EPS wall panel, color: grey white, aluminium alloy frame, equipped with pressure lock and door closer

WallboardDouble skinned EPS wallboard with tongue and groove joints, thickness is 50mm, width is 1150mm, color: grey white

Roof PanelGalvanized plate

Lighting SystemCeiling lights: 32Pcs of 36W lamps, lower lights: 32Pcs of 20W lamps installed horizontally, cold roll plate make of lighting box and spray white powder

CeilingTop bracket made of profiled steel and zinc plated, connecting plate and channel made of cold roll plate and spray white powder, ceiling filter frame made of type C steel and spray white powder

Generator Setting TypeSide upper intake air, back upper exhaust air, quadrate steel frame, white coated steel plate

Intake Fan2sets double-intake centrifugal fans, model: YDW4.5L, power of each fan is 4Kw, total air capacity is 24000m3/h

Extract Fan1set 5.5Kw double-intake centrifugal fan, model: YDW4.5S, air capacity is 15000 m3/h

Heating System1set RIELLO brand oil burner, model: G20, maximum heat productivity is 200,000Kcal/h, stainless steel heat exchanger with explosion-proof hole, electric damper executes from spraying to baking cycle

Filtering SystemPrimary filter, high efficiency filter (ceiling filter), fiberglass cotton filter (floor filter), activated carbon filter

Control Panel:Spraying, heat spraying, baking temperature, time setting, lighting switch, emergency stop, failure indicator, time accumulator, limited-temperature device

Power Supply1u00d7220V,3u00d7380V(50Hz)

Illuminancemore than 800Lux

Highest Working Temperature80

Total Power16Kw

YK-360

ISO&CE
