YK-360 Spray Baking Repair Booth with water-based setting

Guangzhou Yoki Machinery Manufacturing Co., Ltd. is an international cooperative enterprise specializes in automobile spraying booth, industrial coating equipments, automobile maintenance equipments. We intend to provide high-quality paint spraying equipments corresponding support equipments, and well technical services to the automobile after-sales fields and industrial machine manufacturing fields of the world by advanced manufacturing technology and design standard.

Inside Dimension6900u00d73900u00d72700 mm(Lu00d7Wu00d7H)

Outside Dimension7000u00d75350u00d73400 mm(Lu00d7Wu00d7H)

Basement & FloorComplete steel assemble, height is 300mm, full grille floor with guide plate underneath

Ramp3Pcs ramps: 900u00d72000 mm(Wu00d7L), zinc-plated steel

Main Door3-folds of handmade door: 3000u00d72650 mm(Wu00d7H), thickness is 50mm, double skinned made by thickness of colorful steel is 0.6mm, configure heat insulation tempered glass

Personal Door1-fold: 800u00d72000mm(Wu00d7H),thickness is 50mm, double skinned EPS wall panel, aluminium alloy frame, equipped with pressure lock.

WallboardDouble skinned EPS wallboard with tongue and groove joints, thickness is 50mm, width is 1150mm

Roof PanelGalvanized plate

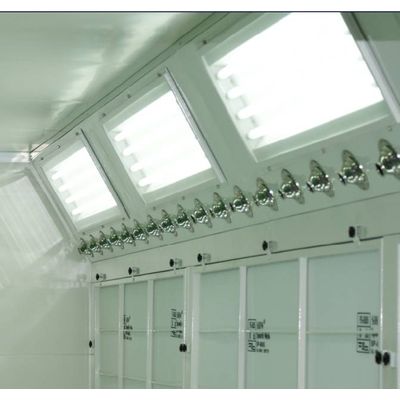

Lighting SystemCeiling lights: 32Pcs of 36W lamps, lower lights: 32Pcs of 20W lamps installed horizontally, cold roll plate make of lighting box and spray white powder

CeilingTop bracket made of profiled steel and zinc plated, connecting plate and channel made of cold roll plate and spray white powder, ceiling filter frame made of type C steel and spray white powder

Generator Setting TypeSide upper intake air, back upper exhaust air, quadrate steel frame, color coated steel plate

Water-based settingWith 1 unit water-based nozzle in the corner, total 4 units. Every technical parameter: with 1pc double-intake fan,0.8KW. Every unit with 10pcs stainless nozzle.

Intake Fan2pcs double-intake centrifugal fans, model: YDW4.5L, power of each fan is 4Kw, total air capacity is 25000m3/h

Extract Fan1pc 5.5Kw double-intake centrifugal fan, model: YDW5.6S, air capacity is 16000 m3/h

Heating System1pc RIELLO brand oil burner, model: G20, maximum heat productivity is 200,000Kcal/h, stainless steel heat exchanger with explosion-proof hole, electric damper executes from spraying to baking cycle

Filtering SystemPre-filter, high efficiency 600G filter (ceiling filter), fiberglass cotton filter (floor filter), activated carbon filter

Control PanelSpraying, heat spraying, baking temperature, time setting, lighting switch, emergency stop, failure indicator, time accumulator, limited-temperature device. With water-based switch.

Power SupplyAs request

Illuminancemore than 1000Lux

Highest Working Temperature80

Total Power19KW

YK-360
