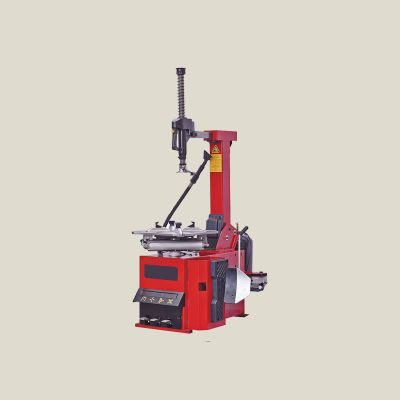

Automatic tire changer with tilting back post TC650

Novsino automatic tire changer with tilting back post TC650

1)For standard, low-profile and run-flat wheels of car and light commercial vehicles

2)Machine post tilted backwards / forwards upon pedal operation (pneumatic) and pneumatically locked in working position

3)Locking rim from 10"-24"

4)Pedal assembly may draw from front cover

5)Self-centring four-jaw turntable controlled via two clamping cylinders for correct clamping of the wheel

6)Plastic protection inside jaws and on mounting head to avoid damage to alloy rims

7)Large bead breaker blade

8)Bead breaker with large anti-skid rubber pad

1)Motor power: 0.75kw/1.1Kw

2)Power supply: 220V/380V/110V

3)Max. wheel diameter: 41" (1040mm)

4)Max wheel width: 14" (355mm)

5)Outside clamping: 10"~21"

6)Inside clamping: 12"~24"

7)Air supply: 8bar-10bar

8)Noise level: <70 dB.

For standard, low-profile and run-flat wheels of car and light commercial vehicles
