Product Description

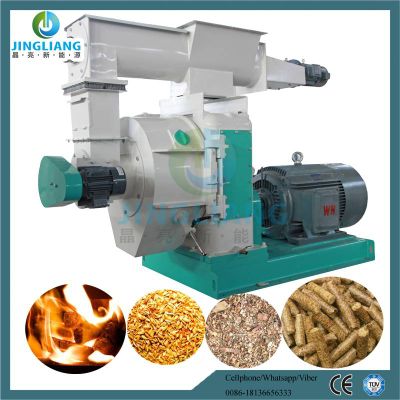

1) Biomass wood ring die pellet machine suitable raw material: Almost any wood waste and agriculture waste including wood sawdust, wood chips, wood shavings, corn stalk, rice husk, cotton straw, napier grass, paper sluge, etc. can be pressed by our pellet mill.
2) Finish product wood pellets Usage: The final pellets can be used for industrial boilers, large power plants as well as home heating. The pellets are with bright future, it has features of efficient, cost-effective, environmental friendly, renewable, broad application.
Product Feature
1).CE approved,gear-driving
2).famous brand motor,imported bearing from Sweden
3).equip hoisting lift,since ring die need to change every 2or3months,this tool is helping to make work easily.
4).freely lubrication system on our pellet press machine body,adding oil or grease is more convenience.
5).pellets cutting mechanism
6).with over-load protection system,protecing during pellet press working
7).force-feeding part in SS material,after years working the body still in good condition.
8).using double-shaft feeding on top of pellet press machine,so material will not stuck easily.
9).connect itself with cooling system,to reduce heat during machine working,prolong its service life.
Product Specification / Models
Model: MZLH508
Capacity: 1.5~2.2ton/h
Power: 132kw,8grade
Inner diameter of ring die: 508mm
Pellet size: diameter 6,8,10mm,length adjustable
Weight: 3500kgs
Application / Models
wood ring die pellet machine is used for making the agro-forestry wastes or boimass materials into solid fuels or wood pellets.
