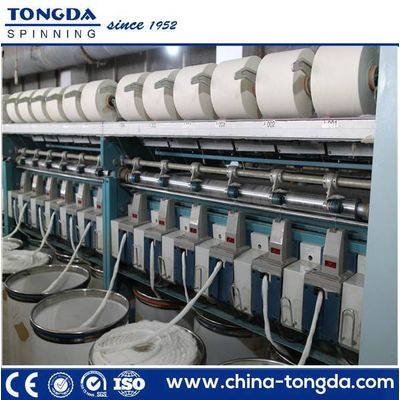

HJF 1603 Rotor spinning machine/OE spinning machine

PLC control, Stable running and long service life



This machine adopt new techniques such as the new type suction spinning unit and the horizontal automatic piecing device,resulting in the maximum speed of the spinning units at 100000 r/min

One can put shaping or select the toper tube for use for the parallel tube

Furnished with the collection of the device semi-automatically, improve efficiency of connecting

Furnished with and fall one suck yarn device, in full yarns fall one produce and stay tail yarn,make the yarn able to retreat and wind in succession

Good operation interface, control and display every technology parameter in real time

With the based on digestion and absorption of the modern spinning technology and integrated

the most advanced scientific and technological achievements, subdivide market requirement,

which is especially ordered equirepment for wool spinning, flax yarn, gloves yarn and so on

particular yarn market.

Yarn count range [tex(Ne)]: 120-16(5-36)



Range of rotor speed (r/min): 40000-110000



Dia: 33, 38, 42, 50



Range of fibre length (mm): <40



Opening roller speed (r/min): 5000-10000



Sliver count range [Tex (g/5m)]: 5000-3000(15-25)



Maximum winding speed (m/min): 170



Draft range: 32-220



Twist range (T/M): 200-2250



Pitch of spin boxes (mm): 216



Max Spin boxes: 352



Per Spin boxes: 16



Dimension of cylinder tube (mm): 54*170

for wool spinning, flax yarn, gloves yarn and so on

particular yarn market.
