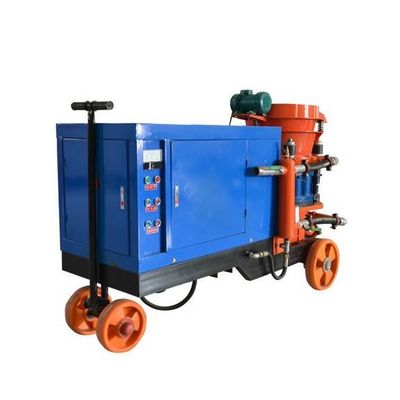

HSP-7 series wet-mix concrete shotcrete machine,wet shotcreting machine

Wet-mix shotcrete machine advantages :simple operation ,low dust

2. Low rebound ,high-strength of concrete layer.

wet-mix shotcrete machine is an advanced concrete spraying technique, developed from dry-mix shotcrete .

Wet-mix shotcrete machine advantages :simple operation ,low dust , low rebound ,high-strength of concrete layer; reliable performance an so on . Widely be used for Construction Engineering, Mining, Tunnel, Culvert, Hydroelectric Project, Underground Engineering.

Model HSP-5 HSP-7 HSP-9

Maximum transmission distance mHorizontal 30

Vertical 20Horizontal 30

Vertical 20Horizontal 30

Vertical 20

Conveying tube i.d mm 51 51/64 51/64

Biggest bone particle size mm 15 15 15

Work wind presssure Mpa 0.3-0.6 0.4-0.6 0.4-0.6

Blast consumption

mu00b3/min 10-15 10-15 10-15

Rotor block

Diameter mm 438 480 480

Springback on average <10% <10% <10%

Add quantity of liquid accelerator 0.3-0.7% 0.3-0.7% 0.3-0.7%

Primary motor type Y132m-6-5.5 Y160m-6-7.5 Y160m-6-7.5

Vibration motor work KW 0.37 0.37 0.37

Setting accelerator metering pumppneumaticpneumaticpneumatic

voltage classes V 380 380 380

boundary dimension mm 1800 *800* 1180 1800* 800 * 1240 1800 * 800 * 1240

Total weight kg 800 900 900
