cable tray manufacture

Cable Tray

1.One of top 5 manufacturer & exporter

2.CE & NEMA certification

3.Samples are available

Has an installed cost of 40 to 60 percent less than conduit.

One-piece design provides rigidity.

Easy to design, modify or extend.

Available in galvanized or plain steel, aluminum or stainless steel.

Can be painted or coated with fusion bonded epoxy.

Can be custom cut to length.

Barriers can be installed to reduce field labor costs.

1.Moderate ventilation with added cable support frequency and with the bottom configuration providing cable support every 4 inches.

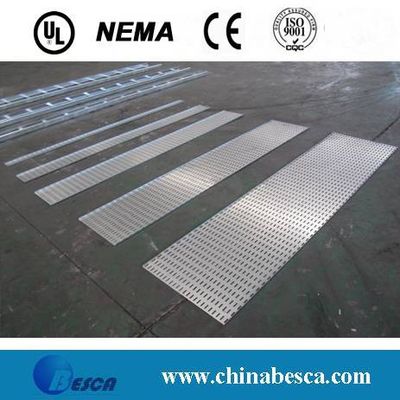

2.Perforated cable tray also suits metal and nonmetallic materials.

3.Standard widths of 6, 12, 18, 24, 30, 36 inches.

4.Standard depths of 3, 4, 5, and 6 inchesStandard lengths of 10, 12, 20 and 24 feetFixed rung spacing of 4 inch on center

Perforated cable tray is generally used for moderate heat generating applications with short to intermediate support spans of 5 feet to 12 feet.

mainly used for low voltage, telecommunication, and fiber optic cables supported on short spans

Material:

Q235 Steel (Chinese standard steel), SS304, SS316 & SS316L,FRP or GRP,Aluminium alloy

Electro zinc plated- for indoor use to BS EN 12329-2000, 12microns thick.

Powder coated- for indoor use to JG/T3045-1998, between 30 and 75 microns thick

Hot Dipped Galvanized-for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick

Acid Washing or Electrolytic Polishing- for stainless cable basket tray use
