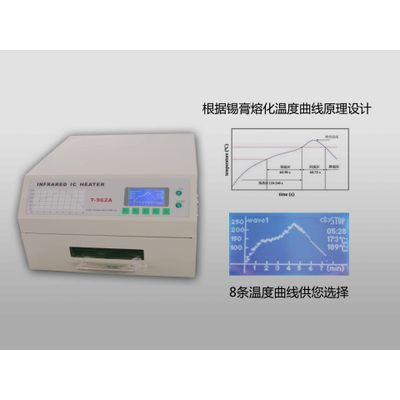

IR-Refolowing Machines of T-962A

INFRARED IC HEATER T962A works automatically by micro-computer control. Can satisfy a dissimilarity SMD、BAG Soldering a request. Whole soldering process to complete automatically, easy to use, Adoption fast infrared radiation and circulation the wind for heat, so the temperature is very Accurate and even. The faintness controls a technique and Can see the drawer type work bench , Make whole soldering process at you of the under surveillance automatic completed; Can soldering the most smart small part. Adopted a high and dependable design, make what you use gratifying and rest assured.

(1). Have big infrared soldering max area: Soldering area to reach effectively: 300u00d7320mm, Increase the usage scope of this machine consumedly, economical investment. (2) Many temperature wave choice for you. Memory eight kinds of temperature parameter waves can be provided as choice, and establish to move heating and cool off function compulsory; Whole soldering process to complete automatically, easy to use. (3) Special heat up and temperature equalization with all design. Output the power reaches to a 1500 W, Adoption fast infrared radiation and circulation the wind for heat, so the temperature is very Accurate and even, Whole soldering process to complete automatically for you choice temperature parameter waves.

Soldering max area: 300u00d7320 cm Size: 43u00d737u00d726cm Packing size: 51u00d744.5u00d733 cm Rated power: 1500W Process Period: 1～8 min Supply: AC110V~ AC220V /50~60HZ Net weight: 12.5kg Gross weight: 15.0kg
