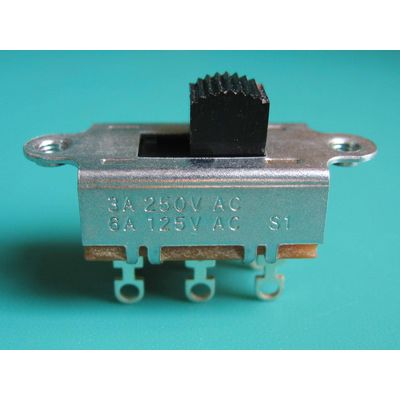

S1 series slide switch with UL VDE ENCE approvals

Light Country, a famous rocker switch manufacturer, specializing in various types of rocker switches and push button switches sincerely provide you service. All our products are approved with UL, VDE, ENEC, CUL, CQC, and SGS certification. With good quality, reasonable price, and short lead time, we warmly welcome your inquiry. The company is engaged in the production and sale of various rocker switches and push button switches for nearly 30 years, so our products are surely of standard quality. This is our S1 series slide switch,if you need more details about this switch, please don't hesitate to contact us.





Electrical rating:UL:6A 125V ENEC/VED:3A 250V

Actuating force:4~8N

Mechanicl life endurance:30000 cycles

Electrical life endurance:10000 cycles

Material of housing:Unstained steel

Material of rocker:PA66

Terminal:Brass (Silver Plated)

Ambient temperature:-20u00baC~+105u00baC

Temperature rise at the terminal:Max.30u00baC(UL1054)

Storage temperature:-30u00baC~+85u00baC

Solder ability of terminal:Max 350u00baC,3s(no pressure may be placed on the terminals when soldering by hands)

Atmospheric humidity:Max.85%

High voltage resistance:>1000VAC/minutes

Option of switch functions



Item No POLES & THROWS Rocker position():Momentary



S11 SPDT ON-ON

S12 DPDT ON-ON
