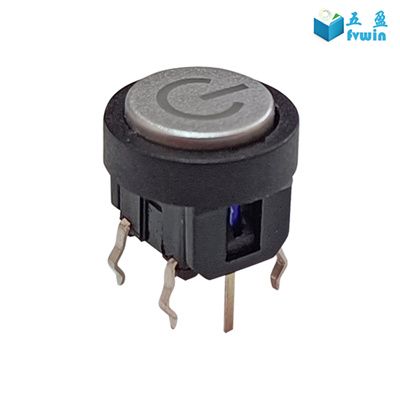

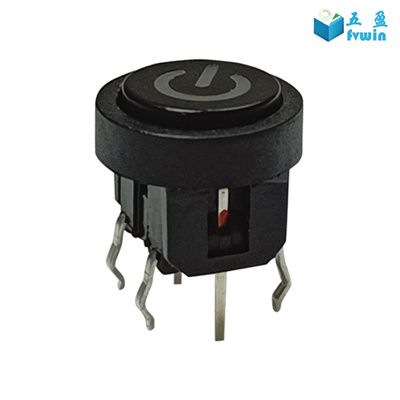

Reset Micro illuminated Push Key Button Switch For PC Front Panel
Circuit: SPST
Current Rating :50mA
Voltage Rating :12VDC
Dielectric Withstanding Voltage:250VAC for 1minute
Contact Resistance :100 Max.(Initial)
Insulation Resistance :100 Min.
Operating Force: 180±50gf or 250±50gf
Total Travel :0.25mm±0.1mm
Operating Life :100000 cycles Min
Solder Specifications :260±50°C 5seconds
Material Composition: base, button:PA66
Fireproofing Grade:94V-2
Terminal: Brass Tin
Function: Momentary
Operating Temperature: 0°C to~60°C

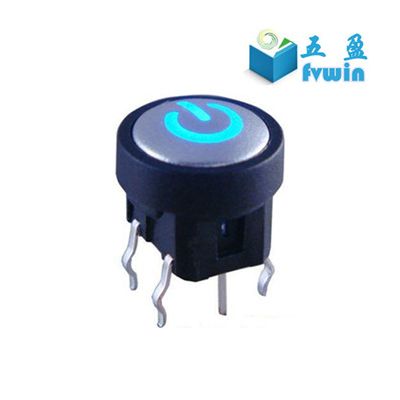

Illuminated: LED (red/green/blue/green/white)
Packaging Details: Inner: Clarity bags/Outer: White Bags
Features:
small size, full color LED illuminated available, long electrical life cycles, SMT and vertical PCB terminal
Snap-in type, which can be directly mounted on PC board.
Some of output terminals can be also used as jumper leads, thus making circuit designs easy.

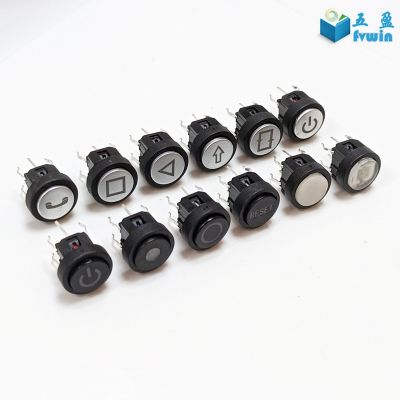

Standard knobs are available
Description:
Operating switches in all type of electronic equipments such as PC peripheral equipment, audio apparatus, multimedia equipment, industrial automatic control board, security equipment, VCRs, communication apparatus, home appliance, digital products etc.
Our company professionally devoted to researching and manufacturing to sell the electronics component and supply. The primary product is tiny illuminated tact switches, push button switch, rocker switches, DC JACK, fuse holders, socket etc.
