control cable copper conductor PVC/PE/XLPE insulated

Product Description

1,IEC ,ASTM,DIN,BSstandard
2,ISO,CCC certification
3,Response within 12 hours
4,Fcatory direct sale
5,Free sample

Product Feature

Control cable is a kind of electrical cable and its each nominal cross section is same. They are featured by insulation material to avoid the current passing through them. They are widely used in the power station and transportation.And the screened feature makes the control cable resist the errosion from the underground and increase the conductivity.

Product Specification / Models

(1). Long-term service temperature of the cable conductor: 70 centigrade.
(2). Rated voltage: 450/750V.
(3). Cable lying temperature cenigrade.

Application / Models

Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,
production lines, transportation equipment, conveyor and assembly lines as well as in plant construction
under the circumstance that the rated voltage is up to 450/750V AC.

Other Information

Type
Name
Section Area(mm2)
No. of Core
KVV
Copper Conductor, PVC Insulated and Sheathed control cable
0.75 1.0 1.5 2.5
2-8 10 12 14 16 19 24 27 30 37
4.0 6.0
2-8 10 12 14
KVVP

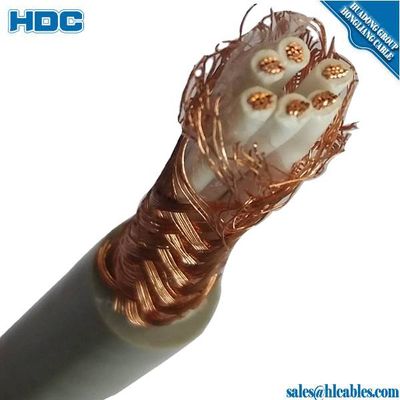

Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable
0.75 1.0 1.5 2.5
2-8 10 12 14 16 19 24 27 30 37
4.0 6.0
2-8 10 12 14
KVVP2
Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable
0.75 1.0 1.5 2.5
2-8 10 12 14 16 19 24 27 30 37
4.0 6.0
2-8 10 12 14
KVVP2-22
Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable
0.75 1.0 1.5 2.5
2-8 10 12 14 16 19 24 27 30 37
4.0 6.0
2-8 10 12 14
KVV22
Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable
0.75 1.0 1.5 2.5
2-8 10 12 14 16 19 24 27 30 37
4.0 6.0
2-8 10 12 14
KVVR
Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable
0.75 1.0 1.5 2.5
2-8 10 12 14 16 19 24 27 30 37
4.0 6.0
2-8 10 12 14
KVVRP
Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable
0.75 1.0 1.5 2.5
2-8 10 12 14 16 19 24 27 30 37
4.0 6.0
2-8 10 12 14
