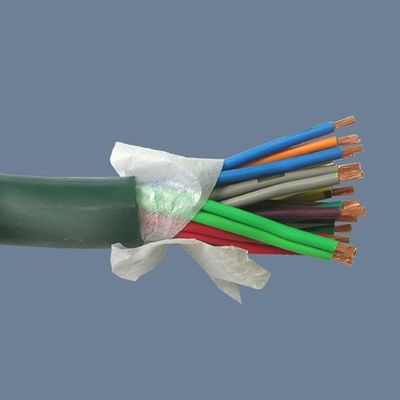

IEC standard 450/750V 2-61Core copper conductor PVC Insulated copper wire screen Automotive Control

Specification

1.Rated voltage: 450/750V

2. Standard applied: IEC 60227, BS 6004, VDE 0281, JB/T8734

3. Max. working temperature: 70 °C ,can be  90 °C ,105 °C and 125 °C as per requirement

4. Insulation: PVC,LSOH material

5.Number of cores: multi-core for this type of cable

6.Cross sectional area: 2*0.75mm2 to 61*2.5mm2 available

7.Cable color: red,black,green and yellow and so on

8. Packing: 100M/roll, as per customer's requirements

9. Quality certificate: CCC

10.OEM and customize can be available

Model

Description

Application

KVV

copper conductor, PVC insulated, PVC sheathed, control cable

Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.

KVVP

copper conductor, PVC insulated, PVC sheathed, braided, shielded, control cable

Suitable for being laid indoors, in cable trench, pipelines or other specific occasions that demands shielding.

KVVP2

copper conductor, PVC insulated, PVC sheathed, copper-tape shielded, control cable

KVV22

copper conductor, PVC insulated, PVC sheathed, steel-tape armored, control cable

Suitable for being laid indoors, in cable trench and pipelines, directly burial or other specific occasions with a relatively large capacity for mechanical stretching force.

KVV32

copper conductor, PVC insulated, PVC sheathed, thin steel wire-armored, control cable

Suitable for being laid indoors, in cable trench, pipelines, silo or other specific occasions that demands shielding.

KVVR

copper conductor, PVC insulated, PVC sheathed, flexible, control cable

Suitable for being laid indoors and places that demands moving cables with flexibility.

KVVRP

copper conductor, PVC insulated, PVC sheathed, braided shielded, flexible, control cable

Suitable for being laid indoors and shielded places that demands moving cables
