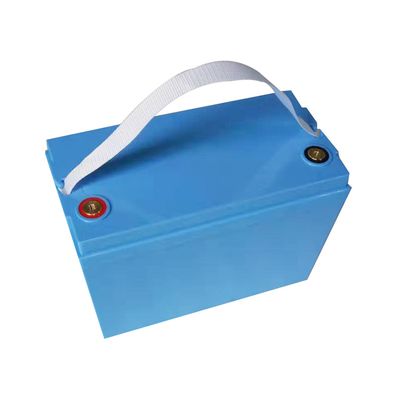

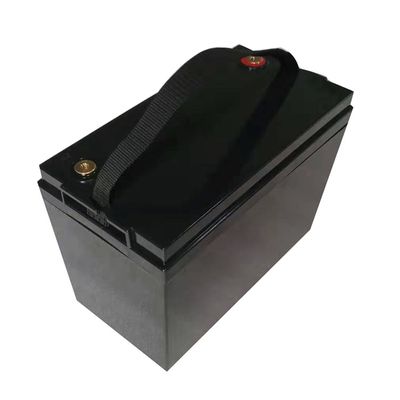

12v 24v 36v 40ah 50ah 80ah 100ah LiFePo4 Battery pack LiFePO4 12v 50ah 200ah lithium battery for rv

No.

Item

General Parameter

Remark

1

Rated Capacity

50.0Ah 60ah 70ah 100ah

Standard discharge(0.2 C5)after standard charge(0.2 C5)

2

Minimal Rated

Capacity

45.0Ah

3

Nominal Voltage

12.8V or customized

4

Cycle Life

Higher than 60% of the Initial Capacity of the Cells

Charge: CC 0.2C to 14.6V, then CV till current to 0.05C

Rest: 30min.

Discharge: 0.2C to 10.0V

Temperature:20±5u2103

Carry out 2000cycles

5

Discharge cut-off voltage

10.0V

10.0V( recommended)

6

Charging cut-off voltage

14.8V

14.6V (recommended)

7

Standard charge

0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C

Charge time : Approx 7h

8

Standard discharge

Constant current 0.2C

Cut-off voltage 10.0V

9

Maximum Charge Current

50A or customized

10

Continuous Discharge Current

100A or customized

Over current 100±5A  9mS

11

Operation Temperature Range

Charge: 5~45u2103

60±25%R.H.

12

Discharge: -10~60u2103

13

Storage Temperature Range

Less than 1 year : 0~25u2103

60±25%R.H.

at the shipment state

Less than 3 months:-5~35u2103

14

Weight

Approx: 6.1Kg

15

Max.Dimension

Height:182mmWidth: 130mmLength: 195mm
