Ultrasonic disperse,emulsification, homogenization,mixing,blending processor

Ultrasonic disperse,emulsification, homogenization,mixing,blending processor



Short Introduction:



Sonochemistry is a new field of intersectional research to accelerate the chemical reaction or change reaction course with ultrasound technology.



When high power ultrasonic is doing in liquid material media, Tens of thousands times ultrasonic vibration will be produced per second continously, to prompt liquid molecular fast movement, that produce 5000K-6000K high temperature,500-800 atmospheric pressure and 2000-5000 gravity acceleration locally,



It will also produce high-power ultrasonic cavitation effect, the mechanical effect and thermal effect. Together with these three powerful function, inside of liquid will form countless tiny explosion reaction districts, which will break all barriers to promote violently collisions between the molecules.



So surely,ultrasonic Sonochemistry will definately thrusting chemical production process and improve efficiency obviously.

Ultrasonic disperse,emulsification, homogenization,mixing,blending processor



Main Function:



1.Emulsions,emulsifying



2.Degassing;



3.Homogenizing;



4.Cleaning and purifying;



5.Dispersing,dispersions,disintegrating,



6.Extraction,extrusion,deagglomeration;



7.Cell disruption and lysis ;



8. More Functions unknow, and wait to research and develop;

Main parameters:



Liquid:water,oil and others;



Temperature: -30 to 800 degrees;



Max Pressure:100MPA;



1.frequency range:15KHz ~ 60 KHz

2.usually frequency:20kHz

3.power:1000W,1500w,2000w,3000w,also can be used for parallel connection

4.Head tool material:Stailess Steel,Titanium,also would like custom for our user

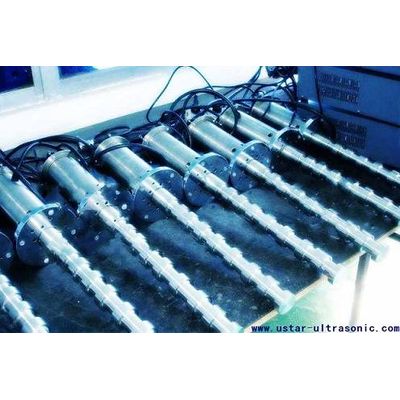

5.Ultrasonic vibration parts size: 160mmu00d7800mm

6.Ultrasonic vibration parts weight:12 kg

7.Driver: analog power, power supply, frequency control type of automatic tracking, flowing pressure protection, adjustable power size.

8 .Driving power typical size:350u00d7250u00d7120mm

9. Driving power typical weight:18 kg

Main Application Areas and Industries:



1. Pharmaceutics,Traditional Chinese medicine and pharmacy Enterprises;



2. Chemical processes(Chemical Enterprises);



3. Petrochemistry Industry(biodiesel conversion or biological processes);



4. Water and waste water treatment Enterprises;



5. Laboratory, Scientific Research Institution and College(University) ;



6. Foods & Beverage Enterprise;



7. Other Industries and Enterprise that could use above ultrasonic technology;

Please contact us if any interesting, let our professional star products and service give you Ultrasonic Sonochemistry problem solution plan.

ustar-ultrasonic+hotmail+com
