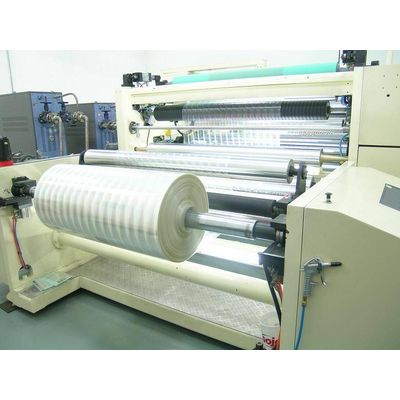

YM 800mm Soft and Hard Embossing Machine

1Produces seamless hologram films as PET,PVC,PP,ETC.

2 Seamless patent technology

3.CE certificate

Design of YM-MYM800D Soft/Hard Embosser

With our patent technology on seamless holographic embossing process, this machine can produce rainbow and other design holographic film without any shim joint.

The precision-engineered construction enables to do both soft or hard embossing processes through exchanging emboss roller. We guarantee a high degree of accuracy at 0.3mm.for the finishing process of point of stamping or transit foil. This can be ensured at the time of purchase.

The Process of Hard Embossing:



The substrate is embossed by passing through a oil heated shim roll and embossing roll. The nickel (Ni) embossed shim is clamped into master roll (as //) and inside master roll rotating heated compliant. The shim is wrapped and clamped around the circumference of the master roll. After embossing the substrate passes through a tension controlled nip roller and then rewound onto a rewind pneumatic shaft. Specially designed heat-exchange systems can increase/decrease temperature in short time.

Specification





Working width: 800~1020 mm

Emboss material:

Embossiable PET Film

Metallized PET Film

Mechanical Speed: Max.100M/min

Max. un-wind/ re-winder Diameter: 800mm

Emboss roller hardness : Share D 85

Emboss Accuracy: u00b10.3mm



Web Guide System EPC

Power: 100kw

Tension control: 10~300N

Max. Sealable Temp: 230 u00b0C

Control Panel: LCD Touch screen

Weight: 8mt

Main Size(L x W x H): 5.5 x2.5 x1.5m
