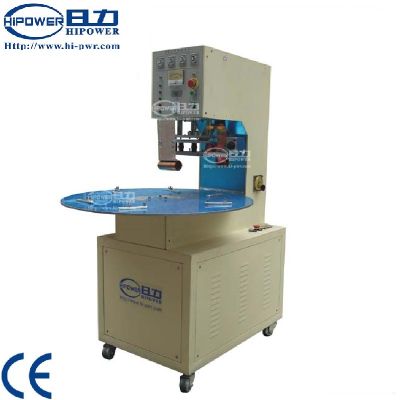

HR-5000E, Single Head HF Welding Machine

Product Description

Model
HR-5000E
HR-8000E

Output Power of Generator
5000W
8000W

Anti-Spark System
U.S.A. PL-5557 High sensitive anti-spark system

Voltage
3P AC 380V/220V/440V 50Hz-60HZ or customize

Frequency
27.12MHz +/- 0,6 %

Input power
8KVA
15KVA

Rectifier
SILICON DIODE

Oscillation tube
7T85RB
7T69RB

Max pressure
350KGS
500kg

Operation mode
Pneumatic Operated

Max gap of electrodes
200mm

Size of active horn
150mm

Working Stations:
Standard 3 or 4 or 6 Rotary work stations

Upper Electrode (W*H*L)
200*350mm
300*500mm

Size of Work Table (L*W)
300*500mm
400*600mm

Welding time
0.01~9.99s adjustable

Net weight
400KGS
800kgs

Foreseen productivity:
According to welding times and operator ski


Product Feature

Machine General Features:

1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.12. High frequency welding press pneumatically operated


Product Specification / Models

HR-5000E

Application / Models

Application:

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages,
But it is multipurpose machine, for it can be used for industry like PU leather cover for pad,, safety vests, reflective signs, inflatable toys, cosmetics, folding packing box, automotive, medical, rehabilitation, packaging, recreation, textile and clothing, reflective garments,.etc.
The HF blister packaging welder series have HF power outputs from 5KW to 35KW 30kW for multi-cavity production loads and specialized products

Other Information

MAIN APPLICATION:Applied for high frequency blister packaging for double-sides, soft crease box/case making, inflatable toy, raincoat and relatives, or any PVC and PVC contained 30% up
