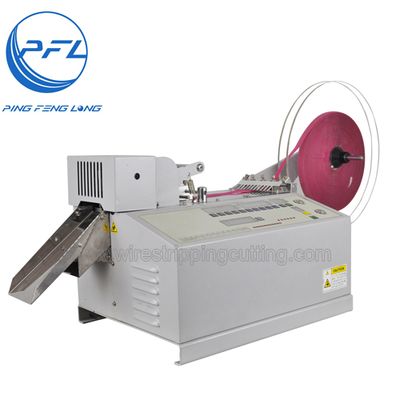

Model:PFL-690
Features: |
1. Easy Operation,It can cut automaticlly once set up the cutting length and quantity.
2.Self protection Function,It will stop automaticlly if the materials run out during the operation.
3.High speed,it can cut 100-120pcs per minute(50mm length for example)
4.High Accuracy,the cutting length is accurate cwing to a stepping motor.
Apply for: |
Widely used to cut kinds of woven belt, nylon buckles, lining, fabric tape without heat seal,plastic zipper,
metal zipper, plastic lace,PVC tube leather, aluminum platinum, PS material and so on.
We supply kinds of special blade,then you can get different shapes of cutting edge.
Specification: |
Available Tape Width: | 5~80mm(for straight cut) 5~40mm(for shape cut) | |
Available Cutting Length: | 5~9999mm | |
Tape Cutting Speed: | 100~120Pcs/Min | |
Cutting Tolerance: | ≤0.5mm | |
Cutting Type: | Cold knives,Straight & Shape cut | |
Power Supply: | AC220V 50Hz | |
Available Materials: | Hook & Loop,nylon/fabric tapes,plastic/metal zippers,leather,aluminum platinum,PVC tubes, PS material etc. | |
Measurement: | 380*320*300mm | |
Weight: | 25kg | |
Features: | Easy Operation,High Speed,High Accuracy | |
Self protection and Memory Function | ||
Repeat cutting | ||
Professional on cutting Hook & Loop tapes |
