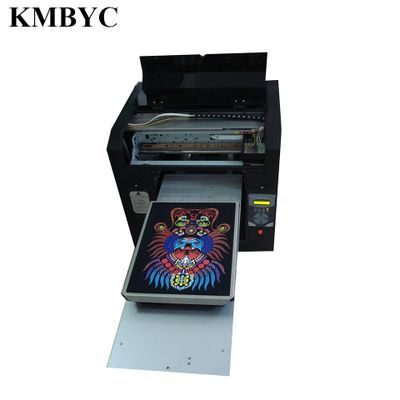

BYC168-2.3 digital inkjet t shirt printer customized t shirt printing machine

BYC168-2.3 t-shirt printer

Take your creativity and productivity to the next level with the advanced features and uncompromising quality of the BYC168-2.3 t-shirt printer. This robust, 32.9 * 60 cm (13 inches * 23.6 inches) print size printer delivers remarkable efficiency and versatility with high-capacity Continuous Ink Supply System, and high-quality textile ink, Epson 1390 DX5 Advanced MicroPiezo print head, yields beautiful prints with an unprecedented high definition. Now, you can take your creativity further with the next generation in high-performance technology.

Model: BYC168-2.3 t-shirt printer

-- Ink: 5-color KMBYC textile ink

-- Color: Cyan, Magenta, Yellow, Black, White, White

-- Resolution: 5,760 * 1,440 optimized dpi

-- Drive system: belt + stepping motor

-- Jacking system: lead screw

-- Industry-leading textile ink - KMBYC textile ink for colorful, vibrant prints, beautiful colors that are highly water-resistant.

-- Individual, large Continuous Ink Supply System - directly connect ink tube to 0.5L or 1L ink bottle, change cartridges less often.

-- Connectivity - Hi-Speed USB 2.0

-- Precision 6-channel print head technology - innovative MicroPiezo DX5 print head with ink-repelling coating for more accurate dot placement and reduced maintenance.

-- Specialized RIP print software - built-in color curve, auto-selecting inks - achieve optimal density and superior contrast

-- Software Included: USB flash disk containing Printer driver, Manual, Operation Video

Print:

________________________________________

-- Printing Technology: Advanced Micro Piezo print head with ink-repelling coating technology; 6-channel, inkjet print head

-- Minimum Ink Droplet Size: Smallest droplet size 1.5 picoliters

-- Maximum Print Resolution: 5,760 * 1,440 optimized dpi

-- Maximum printable area: 32.9 * 60 cm (13 inches * 23.6 inches)

-- Maximum material thickness acceptable: 17 cm (6.7 inches)

-- Maximum material width acceptable: 33.5 cm (13.2 inches)

-- Printer table length: 86 cm (33.9 inches)

-- Photo Print Speed: A4 size photo 1,440 dpi approx. 3.5 minutes (fluctuated based on resolution)

-- Nozzle Configuration: 90 nozzles * 6

Ink:

________________________________________

-- Ink Type: KMBYC textile ink (Epson head applicable inks are acceptable)

-- Ink Palette: Cyan, Magenta, Yellow, Black, White, White

-- Ink Configuration: 5 individual ink bottles

General:

________________________________________

-- Operating Systems: Windows 7/ XP/ 10

-- Temperature:

Operating: 50° to 95° F (10° to 35° C)

Storage: -4° to 104° F (-20° to 40° C)

-- Humidity:

Operating: 20% to 80% (no condensation)

Storage: 5% to 85% (no condensation)

-- Dimensions: approx. 87 * 67 * 63 cm (34.3 inches * 26.4 inches * 24.8 inches) (W * D * H)

-- Weight: approx. 62 kg

-- Packing Dimensions (in Wooden box): approx. 96 * 76 * 78 cm (37.8 inches * 29.9 inches * 30.7 inches) (W * D * H)

-- Packing Weight: approx. 100 kg (fluctuated based on quantity of consumable)

Power:

________________________________________

-- Rated Voltage: AC 110 V or 220 V

-- Rated Frequency: 50 - 60 Hz

-- Power Consumption:

Printing: Approx. 35 W

Sleep mode: Approx. 3.5 W

Warranty:

________________________________________

One year (except for ink supply and cleaning system, print head, consumable and human damage).

Please visit http://www.bycprinter.com for more information.
