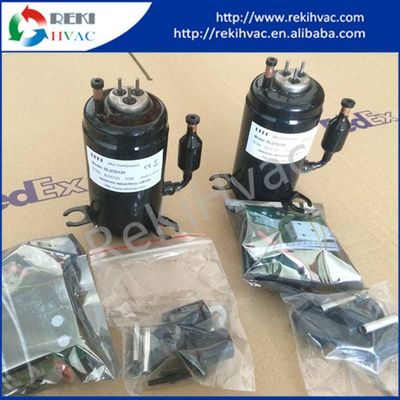

Product Description
Our miniature variable speed refrigeration compressors are designed for connection to 12/24/48V DC power supplies and primary use with refrigerant R134a.The compressor is quiet and has low energy consumption. It operates in conditions where battery, vehicle, grid, or solar power is available as a direct current electrical source. The compressor provides compact power, precision control, and unique flexibility. It fulfills a growing need for miniature thermal management systems.The miniature refrigeration compressor can be used in air conditioning units, water chillers, and commercial refrigeration systems. Because of its unusual weight and size, it can be applied in mobile or portable systems using either battery or vehicle power. And due to its low energy consumption, it's very suitable for small stationary applications, such as in the cooling of electronic components.The BLDC compressor can be configured with standard mechanical type thermostats as used in refrigeration appliances, or with electronic thermostats. The applications identified on this site are just a sampling of some of the many uses for these groundbreaking compressors.
Product Feature
Characteristics : Small sizeHigh efficiency & reliabilityReliable arming performanceLow sound & vibration
Product Specification / Models
Model: RL18D24HRL18D48HRL20D12HRL20D24HRL20D48HRL27D12HRL27D24HRL27D48HPower Supply: DC 24VDC 48VDC 12VDC 24VDC 48VDC 12VDC 24VDC 48VDisplacement (CC): 1.81.82.02.7RefrigerantR134ARotary Speed (RPM): 1700-65001700-45001700-29001700-5000Power (W): 1451456514014080190190MODEL#DISP.(CM3/REV)CAPACITY(W)INPUT POWERPOWER SOURCETOP ROTARY SPEEDWEIGHT(KG)RL27D12F2.711580DC 1229001.3RL27D24F2.711580DC 2429001.3RL27D24C2.7550168DC 2448001.3RL27D48C2.7550230DC 4865001.3RL20D12F2.07065DC 1229001.0RL20D24F2.07065DC 2430001.0RL20D24C2.0450140DC 2445001.0RL20D48C2.0450140DC 4845001.0RL18D24T1.8450147DC 2465000.85RL18D48T1.8450147DC 4865000.85
Application / Models
Mainly Applications: Portable Cooling SystemsMiniature Refrigeration/Freezer SystemsThermally-Controlled Shipping ContainersElectronics Cooling SystemsMedical Imaging EquipmentBeverage CoolingMini-Chilled Water Systems
Other Information
Test Conditions:Evaporating Temperature: -23.3u00b0CCondensing Temperature: 55u00b0CSuction Temperature: 32u00b0CSub-cooling Temperature: 32.2u00b0CAmbient Temperature: 45u00b0CNatural cooling
