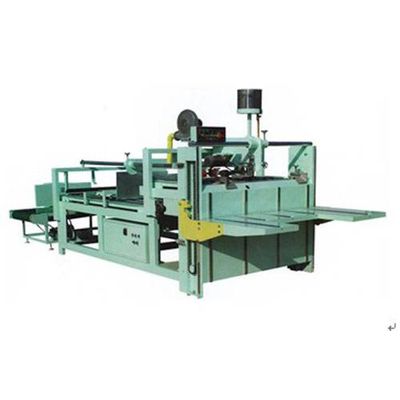

semi automatic carton box folding and Gluing machine

type of the gluer machine:ZXJ-2800

speed machinery:1-75m/min

Max Dimensions of Carton Unfolding:2800*1000



This gluer machine is the last equipment of the cartons' shaping. It adopts multi-gluing rollers to press and glue in same speed to make the carton's gluing balanced, firm and level. Using the materials that match the Natural Standards to weld, the wallboard of the rubber roller adopts high strength cast iron, and it is totally enclosed type which is clean and no noise. It suitable for 3 floors or 5 floors different sizes corrugated papers to glue. (If you want to glue 7 floors, we can do a special one for you). This machine is high efficiency, and the carton it produces are nice and in square shape. The best is that costing not much binder. The cost is 10 times less than yarn stapler. The advantages are gluing firmly, easy and convenient to operate, saving workers and electricity, working steadily. It is the ideal equipment for the advanced exported cartons' gluing. (Attention: the gluing roller adopts wear-resisting alloy materials, the binder box adopts nylon and wear resistant materials, both of them are vulnerable components, so the operating workers have to use clean water to wash it cleanly to longer the service life.







Note: the whole machine is equipped with electric appliance and components origin of commodity



Sticky box helicopter selection of hubei jingshan oe parts

Parameter specification

2800MM



Size of the machine(lengthu00d7widthu00d7height)

5300mmu00d72000mmu00d71500mm



Max size(length+width)*2

2800mm



Min size(length+width)*2

340mm



Max size(width+height)*2

1515mm



Min size(width+height)*2

260mm



Paper height

1000mm



Engine power

4.0kw



Machinery speed

60m/min



Weight of machine

2150kg
