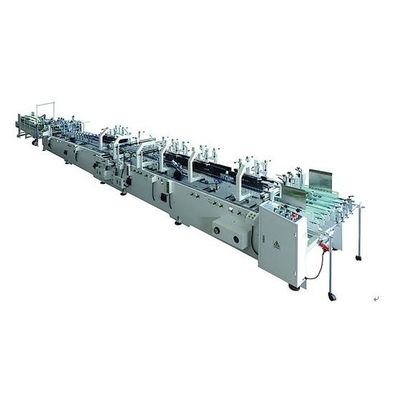

Automatic high speed folding and gluing machine

1.The basement is made of integrated steel featuring with good rigidity,compact structure and easy operation.

2.Realible product quality and high production efficiency with maximum speed of 250m/min.

3.New type of imported circled tooth synchronous belt is used for mechnical transmission,featuring accuracy and smooth drive,low noise and long service life.

4.Flexible function,the model various sizes and shapes of cardboard boxes should be formed as per the figuration selected.

The equipment is suit for Cosmetic box ,medicinal box , wine box , CD bag, envelop type , four / six point corner box ,board and other Miniature corrugated packing. Easy to operate, running steady, is an ideal machine .

HZH-650

Material Cardboard:250-600g

Catplasm (glue) Water-base cold glue

Max .paper size 650mm

Min.paper size 140mm

Speed 240m/min

Power supply 3P380V50HZ

Main motor power 7.5KW;

frequency 0-40HZ

Total power 9.5KW

Overall dimension 11.8*1.35*1.5m

Weight 4.5tons
