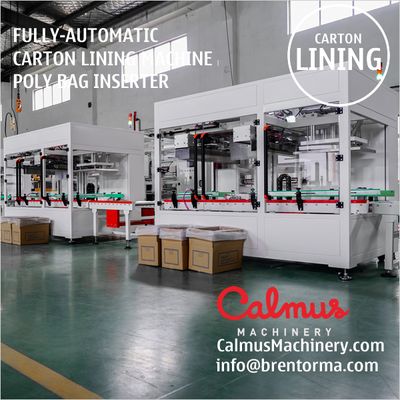

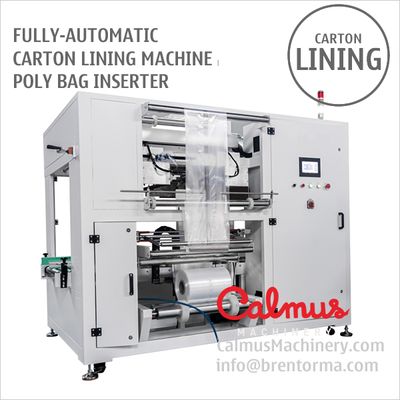

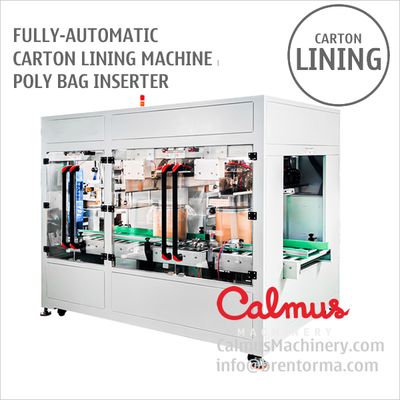

Fully-automatic Carton Lining Machine Poly Bag Inserter

Fully-automatic Carton Lining Machine | Liner Placer | Poly Bag Inserter

This carton lining machine | poly bag inserter inserts a poly bag in a box from a roll stock film, open and cuff the bag over the carton flaps, blow air to expand the bag to fit on the internal wall of carton better.

The lining machine reduces labor and material costs, is simple to operate and easy to adjust. High efficiency and labor saving.

Specifications:
Inserting capacity: 6-7 cartons/min
Film width: 460-840mm
Applicable carton dims: L250-550*W200-400*H150-40 0mm, also can be customized
Power supply: 3 phase, 4.5 kW
Compressed air: 6 bar
Air consumption: 100 NL/min
Machine dims: L3322*W2177*H2350mm (for reference only)

We are also able to manufacture high-speed carton lining machines with 12 cartons/minute.
