card collector

Product Description

RF card read/write
Equip with infrared scan for barcode
Card auto-retract Preserve card quantity detection interface for error card bin

Product Feature

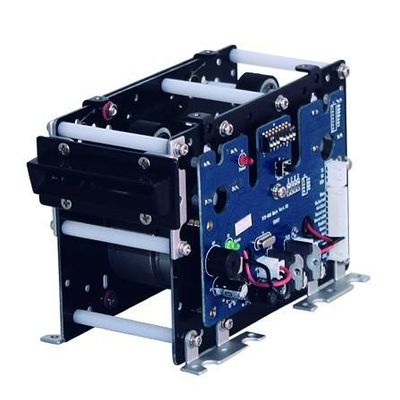

ICC-200 Card Collector


Application:
Toll system of car parks

Access control system

Functions:

Use plastic as body casing and will minimize effect to any contactless reader.
Industrial design, good resistance to abrasion and corrosion, fit for high and low temperature environments.
Directly connect to the inductance signal to achievement card s'collection when car is coming.
Provide RS232/RS485 or I / O voltage two control interfaces
Die-wide production ensure the products' quality and consistency

Technical data:

Motor: 2units inside
Operating Voltage: 24VDC (MAX current 2A, static current 0.1A)

Operating temperature: -20 to 80

Operating relative humidity: 30%-90%

Used condition: installed in bin

Card Material: all kinds of paper cards and PVC / Mylar cards
Card collection speed: about 1.0s
N. W: 0.7Kg
