Product Description
Model:ECL1010ECL1030ECL1060
Laser type:CO2
Coding type:Dynamic coding/static coding
Laser power:10W30W60W
Cooling system:Air cooling
Coding line:Setting freely within marking area
Character height::0.8mm-300mm
BarcodeA variety of 1D and 2D barcode types
Graphics formatBMP/DXF/HPG/JPEG and many other graphics formats
Text type:Fixed text, serial number, date, counter, shift code, random code
Coding range:Choosing from 70mm to 300mm
Interface:10.4-inch industrial touch screen with high precision
Operating system:EC-JET "SEQ" operating system
Standard portSynchronous port, the product detector port, external alarm port, standard USB port, Ethernet port, RS232 port
Appearance:Industrial-grade stainless steel casing and industrial-grade aluminum shell
Controller installationPortable or desktop
Operating temperature:5~40u00baC
Relative humidity
(no condensation)10~90%
Protection grade:IP55
Power supply100~240V AC50/60Hz
DimensionsCO2
Laser head:746*140*190 883*140*190
Controller:470*335*150
Handheld Touch Screen:272*21*218
Product Feature
1."SEQ" central control system and USB data backup storage software

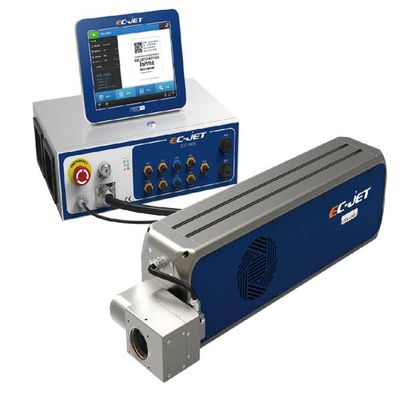

2.modular design, combined with three parts, laser head, controller and handheld touch screen.
Product Specification / Models
ECL-1010,ECL-1030
Application / Models
EC-JET coding printer machine can printing on many material.Such as metal,wood,beer bottle, paper and so on.
Depends on your samples and requirment
Other Information
Dustproof and Waterproof grade:could be also IP68
