Agricultural Double Angle (Hexagonal) Wrapped Belt
Home
Agricultural Double Angle (Hexagonal) Wrapped Belt

Agricultural Double Angle (Hexagonal) Wrapped Belt

  • $1
    >=1
    Others
Min. Order: 50
Delivery: 30 days
Origin: China
Packing: Wooden carton
Inspection: -
Samples: Free
Contact Supplier

Favorite

Inquiry Basket

Product Attributes
Company Profile
Logistics and other information
    Product Details

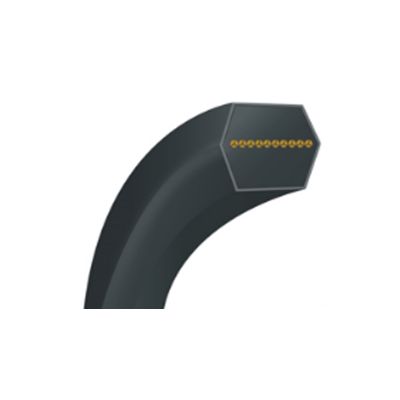

    Agricultural Double Angle (Hexagonal) Wrapped Belt

    HAA, HBB, HCC, HDD



    Application Areas

    Application areas: Combine Harvesters

    Our high quality agricultural wrapped Belts can be widely used on almost all of popular combine harvesters as below listed

    John Deere, Agco, Case, New Holland, Claas, Deutz-Fahr, Horwood Bagshaw, Laverda, Massey Ferguson, Owatonna, Vassalli,Versatile, White, Gomselmash, Rostselmash, Maxxi, Fieldking, Vardhman, Dronningborg, Sampo, etc. Once you provided us belt part number, you will received our quotation.



    Features

    Superior high power transmission capacity

    Aramid cord reinforcement for high tensile strength

    Lower elongation and slippage

    Excellent performance under heavy shock load conditions

    Suitable for drives with small pulley diameters

    Suitable for heavy-duty, high-speed applications

    Anti-static, oil and heat resistant

    Temperature range: -25u02daC to +100u02daC

    Manufactured in ISO 9001 registered facilitiy



    Structure Details of Hexagonal Agricultural Belt

    No.

    Name

    Material

    Function

    1

    Cover Fabric

    Polyester Cotton Canvas

    Protect the linling tensile member

    2

    Top Fabric

    Polyester Cotton Canvas

    Wear-resistant bias-cut neoprene rubberised polyester cotton fabric

    3

    Filler Rubber

    NR, CR, SBR

    Maintain the top shape of the adhesive tape

    4

    Cushion Rubber

    NR, CR, SBR

    Core material to pass the dynamic force

    5

    Tension Cord

    Polyester/ Kevlar Cord

    High tensile cord embedding cushion rubber compound

    6

    Base Rubber

    NR, CR, SBR

    Support and protect the adhesive force of the tensile member

    7

    Buttom Fabric

    NR, CR, SBR

    Maintain the bottom shape of the adhesive tape



    Product Specifications

    Section

    Dimensions

    Manufacturing Length Range



    Top Width
    (mm)

    Height
    (mm)

    Angle
    (Degree)

    Min. (inch/mm)

    Max. (inch/mm)

    HAA

    13

    10

    40°

    Min. (inch/mm)

    Max. (inch/mm)

    HBB

    17

    13

    40°

    40 / 1000

    590 / 15000

    HCC

    22

    17

    40°

    40 / 1000

    590 / 15000

    HDD

    25

    16

    40°

    40 / 1000

    590 / 15000



    Reference Standards

    Reference Standards

    BS 3790, DIN 2215, RMA/MPTA IP-22, ISO 4184, IS 2494, ISO 3790, BS 3733, ASAE 211.5
