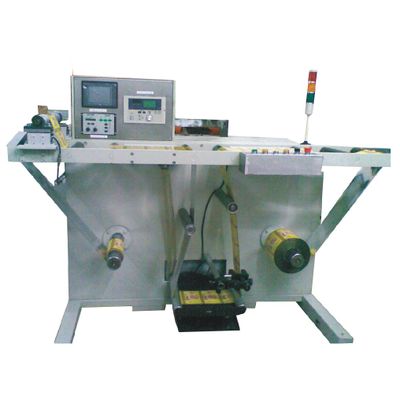

The unit uses AC frequency or servo drive technology, and achieves coil rewinding by controlling tension system with PLC computer. Touch human-machine interface is configured to achieve digital management and control of the action, process flow and process data of the machine, and the product quality and control precision are guaranteed and substantially increased. Practical and optimized mechanical design and control system interface, dual-motor drive tension control system specially designed for cantilever and rewinding structure is stable and reliable, and applies to high-speed rewinding operations of the narrow coils.
Technical Parameters:
Item | Performance indicators: GZX-300HBE, GZX-500HBE |
Applicable materials | Reel type printing film, light film; reel type ≤ 70g/m2 paper |
Material width | 50~300mm, 50~500mm |
Material range | 0.005~0.025mm film, 35~70g/m2 paper |
Unwinding diameter | 400mm Max, 600mm Max |
Rewinding speed | 180m/min. Max, 250m/min. Max |
Tension accuracy | ±3N |
Power | 5KW |
Power supply | 380VAC 50/60HZ |
Dimensions | 1900×1000×1200 mm |
| 1450×1200×1800 mm |
