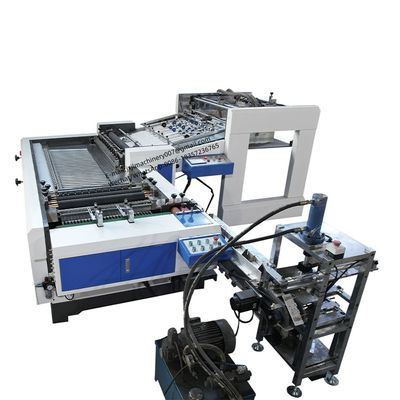

Our company has independently developed a fully -automatic card slitting machine. The machine is mainly used for slitting, collating, die-cutting and punching of various types of cards like playing card paper and plastic PVC sheets. It not only has high efficiency, but also has high cutting accuracy ,and can cut cards and playing cards of different specifications, and ensure that the cutting cards in sequence. The patented technology of the utility model can replace manual card allocation and card management, save manpower and improve production efficiency, and is an ideal production equipment for playing cards and game cards industries.
Characteristic:
1.Automatic feeding, cutting, collating;
2.Rules by the former position, lateral rules prescribed by the flat paper roller convey to longitudinal slitting ,so as to meet the same precision level as offset
3.Slitting knife easy to change, easy to adjustable;
4.Structure compact, easy to maintenance, cover a small area;
5.collating card system after few years reaching ,development ,try out, running stable;
6.Electrical by PLC control, collating system by touch screen control, safety and reliability, automatic , easy to operate;
Technical parameters:
Suitable paper thickness: 150-500gsm
Speed:5000decks/hour
Power: 380v
Total power: 8.5kw
Dimension: 3600*4100*1800mm(L*W*H)
Weight:3200kg
MODEL | PK54-55 | PK108-110 |
Max.Paper size | 600x760mm | 1050x720mm |
Min. Paper size | 450x500mm | 560x760mm |
Max.Card size | 120x100mm | 160x160mm |
Min.card size | 50x70mm | 50x70mm |
Best machine speed | 3200decks/hour | 5000decks/hour |
