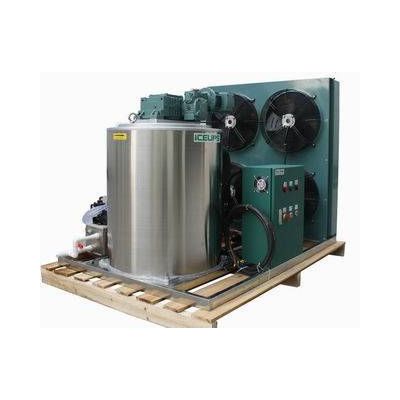

Poultry Flake Ice Machine, Ice Making Machine(2ton/day)

Product Description

ICEUPS flake ice machine system designed with intelligent PLC control system,stable running, high-efficiency and simple maintenance.
Our evporators are make up of stainless steel SUS304 or carbon steel. Its evaporating area is greatly expanded and the ice is more beautiful and dryer by its inner spiral chute design. So it never distorts even long time working in low temperature and low pressure, which greatly increase the working life of the flake ice machine system.

Product Feature

Features:

1: Automatic PLC control system: Intelligentized PLC control, don't need to arrange people to monitor the machine
2: Emergency Alarm: It makes you know immediately once the emergency happens
3: Cable Channel: All the wires packed in stainless steel channel, protects the wire, also makes the machine look neat and tidy
4: Energy Guide: You can see clearly the energy consumption of the machine
5: Obvious Warning label: Protects operators from injury
6. KMS series ice machine capacity:
KMS 0.5T/ 0.8T /1T /1.2T /1.5T /2T /2.5T /3T /5T /8T /10T /12T/15T/20T/25T/30T
for each 24 hours. ( 1T=1000kg)

Product Specification / Models

KMS-2T
Specification:
1) Daily capacity: 2000kg/24h
2) Cooling capacity: 9400kcal/h
3) Compressor: Bitzer
4) Refrigerants: R404A
5) Ice thickness: 1.5-2.2mm
6) Compressor power: 3.75kw
7) Total power: 4.4kw
8) Cooling type: air cooling
9) Power supply: 380V, 50Hz, 3P
10) Dimension:1510*1400*2350mm
11) Weight: 360KG

Application / Models

ICEUPS Flake Ice Maker for Supermarket , Aquaculture industry, Chemical industry, Slaughtering industry, Concrete mixing industry, Large seafood processing mill, etc.

Other Information

Warranty :
One year after shipping;Cost of fault parts in material or workmanship, labor and related service will be free for customer
