Product model

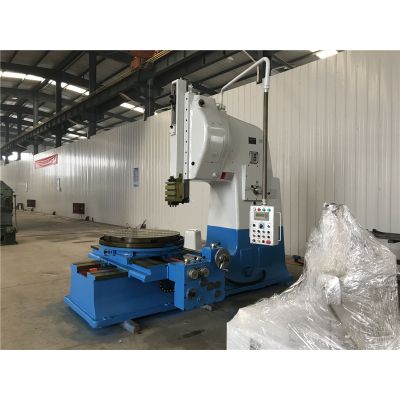

B5050 Slotting machine
specification
Specification | Unit | B5050 |
Max.ram slotting length | mm | 500 |
Ram moving frequency per minute | times/min | 9-50 |
Distance from cutter head to column surface | mm | 990 |
Distance from ram lower end to table surface | mm | 740 |
Table Diameter | mm | 1000 |
Table longitudinal travel | mm | 660 |
Table cross travel | mm | 1000 |
Table rotation angle | ° | 360 |
Table feed range(longitudinal and cross) | mm | 0.10-1.2 |
Table rotary feed range | mm | 3-36 |
Main motor power | kw | 7.5 |
Machine weight | kg | 1.300 |
Overall dimension | mm | 3480X2085X3307 |
