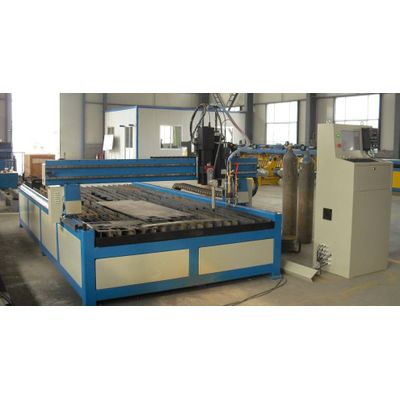

This model cnc flame cutting machine is gantry structure, its horizontal track width have many specifications:2m,3m,4m,5m,6m,7m,ect.2m,3m,adopt single drive ,3m,4m,5m,6m,7m adopt dual drive and lineal guide. Torch quantity and type are optional according to users' requirement, also can be configured as abnormity cutting and strip cutting. Control system adopts CNC system (MicroEDGE hypertherm or Made in China).draw CAD figures on the scene, figure tracking function when cutting.

Features



1. FRAME

Gantry box beam with good carrying capacity, high double sides drive, For the compact structure, sufficient to eliminate the welding stress, its performance is stable and reliable.

2. GUIDE RALLS

Horizontal guide rails using domestic or imported guide, is of high precision and good guidance.

Longitudinal guide rails made from special metals, with grinding surface ,has very high mechanical precision and abrasion resistance.

3. DRIVE RACK, GEAR

Horizontal, longitudinal transmission use Germany NEUGART maintenance-free planetary gear reducer of high accuracy, large torque. low back lash.

4. SERVO DRIVE

Our servo drive system is of Panasonic,position detection function, high working precision and short acceleration time.

5.USA Hypertherm plasma source

Technical parameters



Horizontal track space(mm)

4000

4500

5000

5500

6000

6500

7000



The effective cutting width(mm)

3200

3700

4200

4700

5200

5700

6200



Overall width(mm)

4800

5300

5800

6300

6800

7300

7800



Cutting mode

flame only,plasma only,flame and plasma



Drive method

rack and pinion drive for X and Y axes



Drive mode

bilateral-side



Flame cutting thickness

6-200mm



Plasma cutting thickness

0-50mm(according to the specification of plasma power source)



Cutting speed

0-6000mm/min



Empty stroke speed

0-10000mm/min



Automatic torch height controller(option)

capacitive height control for flame cutting



arc voltage height control for plasma cutting



Cutting gas

acetylene,propane(option)



Plasma gas

pressed air,oxygen,N2



Marking tool

yes(Option)



Nesting software(option)

INTEGNPS,FASTCAM

Application



It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
