Product Description
Print method
Direct thermal / thermal transfer
Dimensions
218(W)u00d7278(D)u00d7185(H)mm
Weight
2.5KG
Operating temperature / Humidity
Operation environment
+5u00b0C~45u00b0C,20%~90%RH
Storage environment
-40u00b0C~60u00b0C,20%~93%RH
Input voltage
220V+_10%; 50/60 Hz with universal power supply
PRINT
Resolution
203dpi
Speed (standard)
Up to 75 mm/s
Print width (max.)
104mm
CPU
32bit RISC embedded microprocessor unit
Storage unit
SDRAM:2MB,Flash:1MB
Programming language
BPLABPLBBPLZ
RIBBON
Width
12.5mm
Length
90m
MEDIA
Media width
110mm
Label thickness
0.06mm~0.20mm
Outer media roll diameter
127mm
Inner media roll diameter
25mm
SOFTWARE AND CONNECTIVITY
Printer driver
Windowsu00ae 2000, XP, Vista,
Host interface
RS232,USB, Centronics
option
Flash memory card:1MB4MB8MB
Stripping components
External supports the paper
Product Feature
1.Direct thermal / thermal transfer;
2.203dpi,Up to 75 mm/s
Product Specification / Models
Print method
Direct thermal / thermal transfer
Dimensions
218(W)u00d7278(D)u00d7185(H)mm
Weight
2.5KG
Operating temperature / Humidity
Operation environment
+5u00b0C~45u00b0C,20%~90%RH
Storage environment
-40u00b0C~60u00b0C,20%~93%RH
Input voltage
220V+_10%; 50/60 Hz with universal power supply
PRINT
Resolution
203dpi
Speed (standard)
Up to 75 mm/s
Print width (max.)
104mm
CPU
32bit RISC embedded microprocessor unit
Storage unit
SDRAM:2MB,Flash:1MB
Programming language
BPLABPLBBPLZ
RIBBON
Width
12.5mm
Length
90m
Application / Models
OFTWARE AND CONNECTIVITY
Printer driver
Windowsu00ae 2000, XP, Vista,
Host interface
RS232,USB, Centronics
Other Information
Place of Origin Beijing, China (Mainland)
Brand Name Beiyang

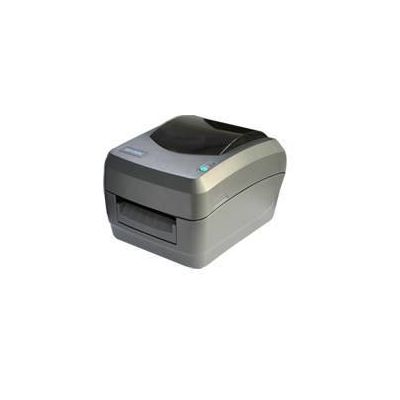

Model Number BTP-L42
Type Heat Transfer
Plate Type Other
Usage Paper Printer
Color & Page Single Color
Automatic Grade Automatic
Condition New
Dimensions(L*W*H) 278*218*185mm
barcode printer barcode
