Applicable locations:

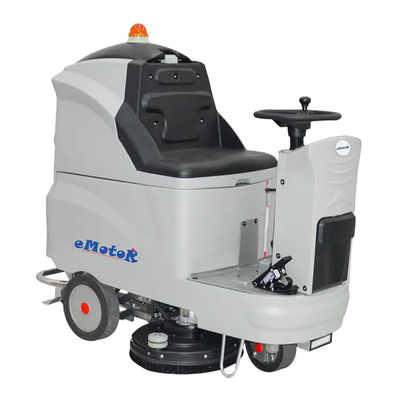

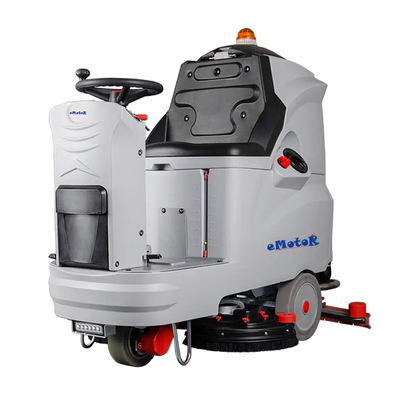

EMOTOR-H is a ride on floor scrubber, easy to operate the machine by controlling the keyboard. The design of the model conforms to the European and American human body shape, and the machine is equipped with warning devices to ensure the safety of the operator
It is suitable for cleaning hard floors such as ceramic tiles, mirrored stones, PVC, epoxy, emery, and polished cement.
It is a cleaning tool for large warehouses, stores, workshops, exhibition halls, venues and other venues.
It is also suitable for use in open-air squares and pedestrian streets.
Feature:
1. Water level display for direct observation of water level change.
2. Warning light for safe driving.
3. Front LED headlights for easy cleaning
4. insufficient light places such as underground parking lot etc.
5. Water filter installed for easy routine maintenance. Quiet design suitable for sound sensitive environments such as offices, hospitals etc.
6. Water level sensor in recovery tank, vacuum motor will be automatically locked when water is full.
7. Float device prevents sewage from entering vacuum motor.
8. Hall type acceleration pedal (high IP class) for longer service life.
9. Rear bumper to better protect critical components from damage when reversing.
Parameter:
Model: | H760B | H760B PRO | H860B | H120 |
Rated voltage: | DC24V | DC24V | DC24V | DC24V |
Working efficiency: | 4500u33a1/h | 4500u33a1/h | 5100u33a1/h | 4500u33a1/h |
Working width: | 760mm | 760mm | 860mm | 760mm |
Squeege width: | 1000mm | 1000mm | 1000mm | 1000mm |
Bursh speed: | 180prm | 180prm | 180prm | 180prm |
Brush motor: | 500W8@ | 500W*2 | 500W*2 | 500W*2 |
Brush diameter(quantity): | 390mm(2) | 390mm(2) | 430mm(2) | 390mm(2) |
Brush pressure: | 30-60KG | 30-60KG | 30-60KG | 30-60KG |
Vacuum motor: | 600W | 600W | 600W | 600W |
Suction Vacuum: | 160mba | 160mba | 160mba | 160mba |
Taction motor: | 400W | 400W | 400W | 760W |
Forward speed: | 0-6km/h | 0-6km/h | 0-6km/h | 0-6km/h |
Gradebility: | 10% | 10% | 10% | 15% |
Radius of turning circle: | 870mm | 870mm | 870mm | 870mm |
Lift motor(Brush): | / | 35W | / | 35W |
Lift motor(Squeege): | / | 35W | / | 35W |
Solution tank capacity : | 110L | 110L | 110L | 120L |
Recovery tank capacity: | 125L | 125L | 125L | 130L |
Sound lever: | 68dB(A) | 68dB(A) | 68dB(A) | 68dB(A) |
Dimensions(L*W*H): | 1560*840*1450mm | 1560*840*1450mm | 1560*840*1450mm | 1560*840*1320mm |
Battry: | 4*DC12V 100AhC3 | 4*DC12V 100AhC3 | 4*DC12V 100AhC3 | 4*DC12V 100AhC3 |
Charging time: | 8-10h | 8-10h | 8-10h | 8-10h |
Continuous working time: | 3-4h | 3-4h | 3-4h | 3-4h |
Battery weight: | 145kg | 145kg | 145kg | 145kg |
Machine weight no batteries: | 225kg | 225kg | 230kg | 225kg |
Accessories: | Pd drive*2,Brush*2, Batter*4,Charger*1 | Pd drive*2,Brush*2, Batter*4,Charger*1 | Pd drive*2,Brush*2, Batter*4,Charger*1 | Pd drive*2,Brush*2, Batter*4,Charger*1 |
Package:
H760B | 166*78*162 | 420 |
H120 | 166*80*152 | 420 |
The main modes of transportation are by sea and landStandard wooden box packaging
